A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-8149002.png)
-

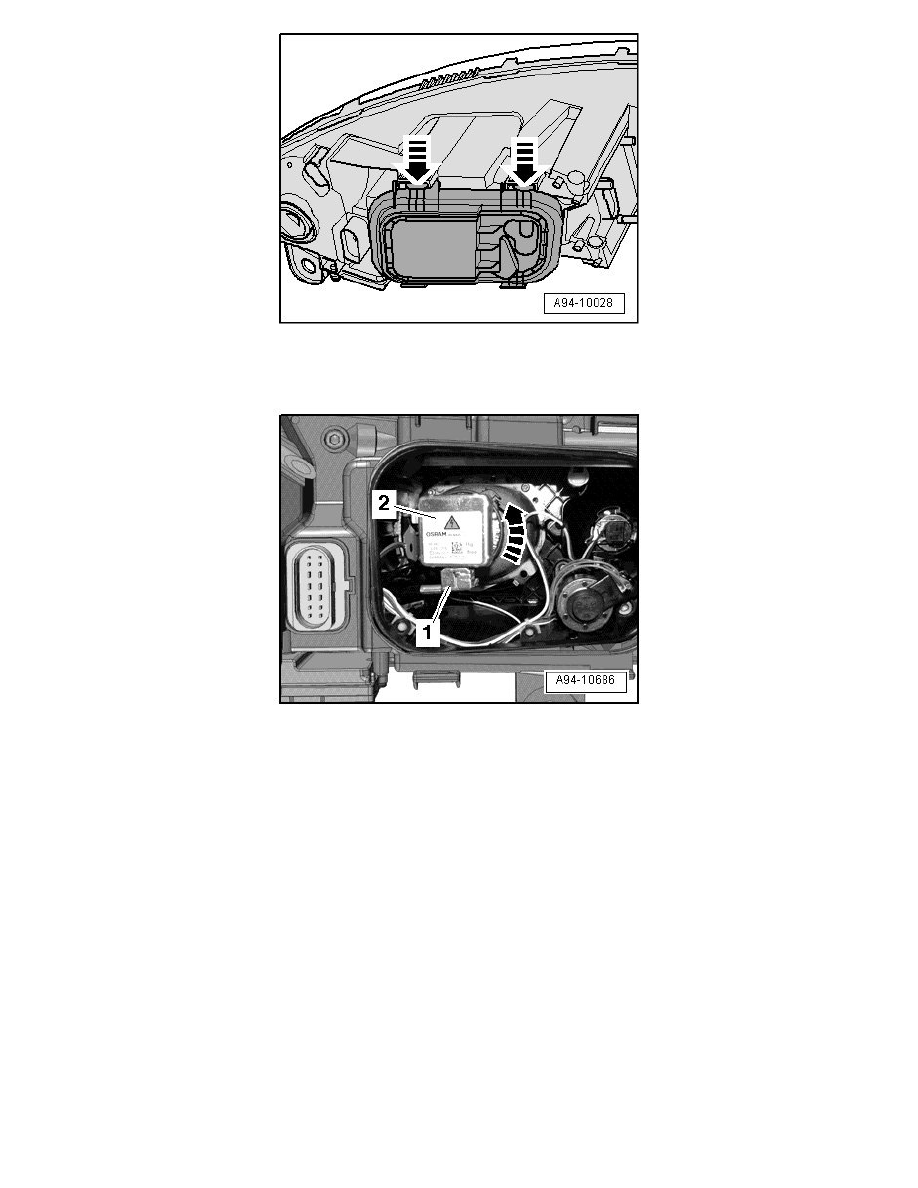

Release securing guides - arrows - and remove headlamp housing cover.
-
Rotate the HID bulb - 2 - in the - direction of the arrow - and remove it from the housing.
-
Disconnect the electrical connector - 1 -.
-
Release the clamp - arrow A - and open the adapter ring - 2 - - arrow B -.
