Alignment: Procedures
ACC Sensor, Assembly Overview

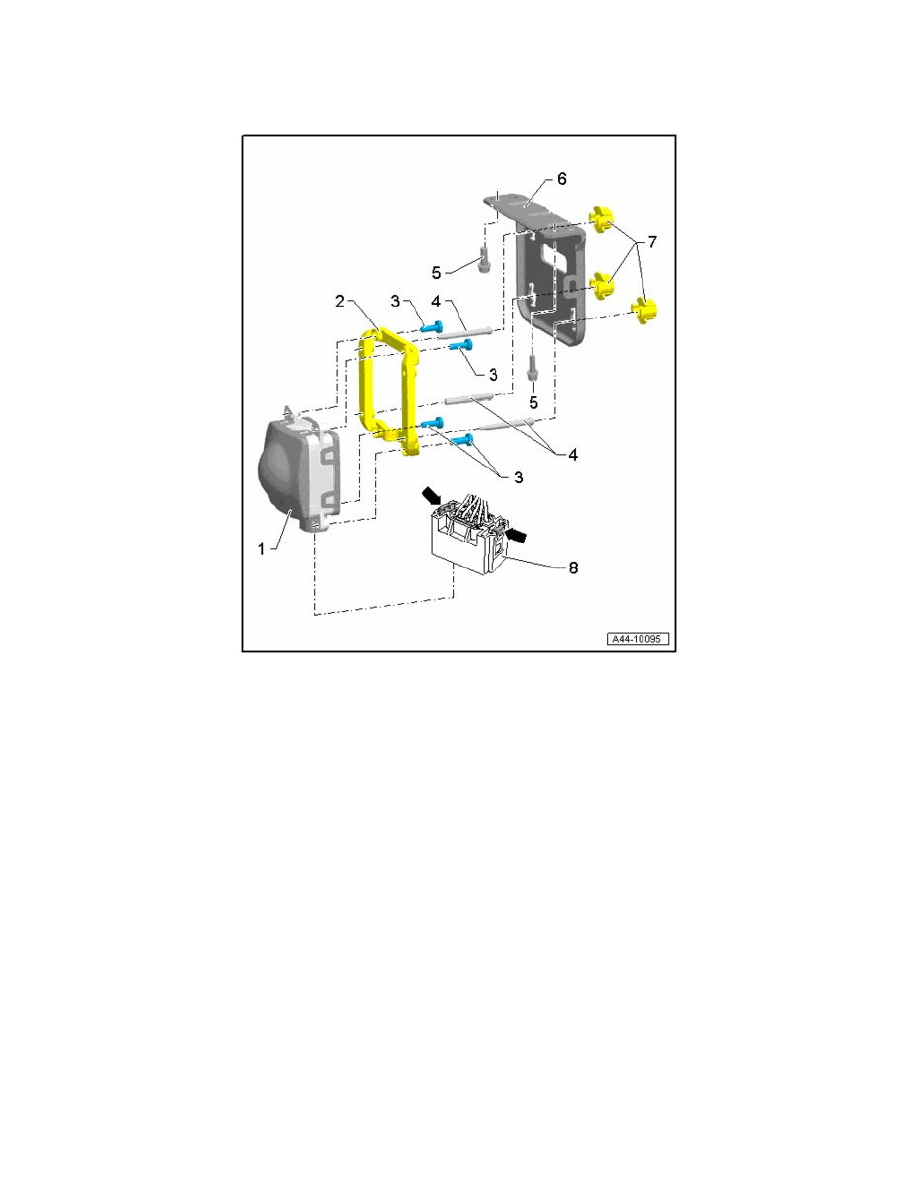

ACC sensor, assembly overview
1 - Sensor
2 - Frame
3 - Bolt, 4.5 Nm
4 - Stud
^
Observe adjustment dimension when installing
5 - Bolt, 8 Nm
6 - Bracket
7 - Nut
8 - Connector
