A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 3
background image

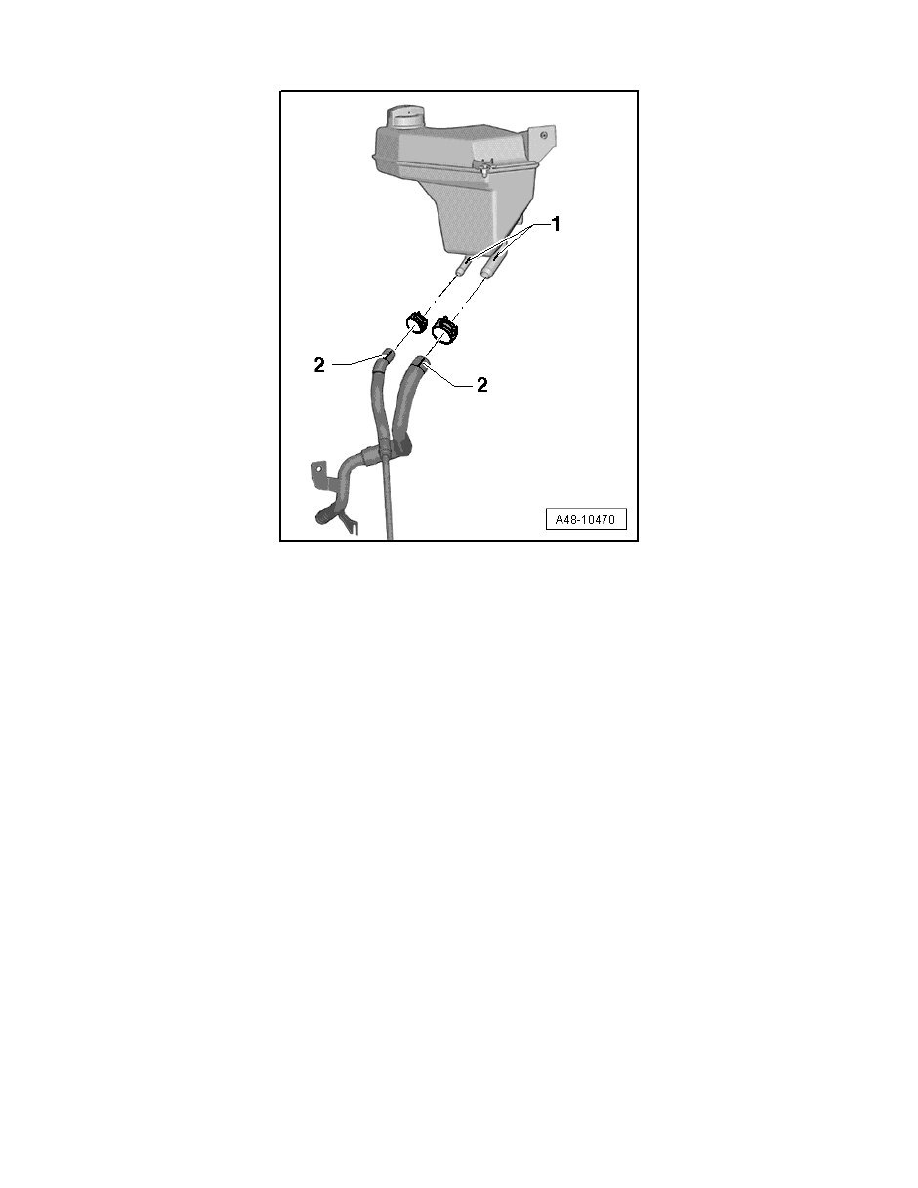

Installation location: Supply hose to reservoir, applies to 10-cylinder TFSI

The dash markings - 2 - on the hoses must align with the markings - 1 - on the reservoir.
