A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2696002.png)
-

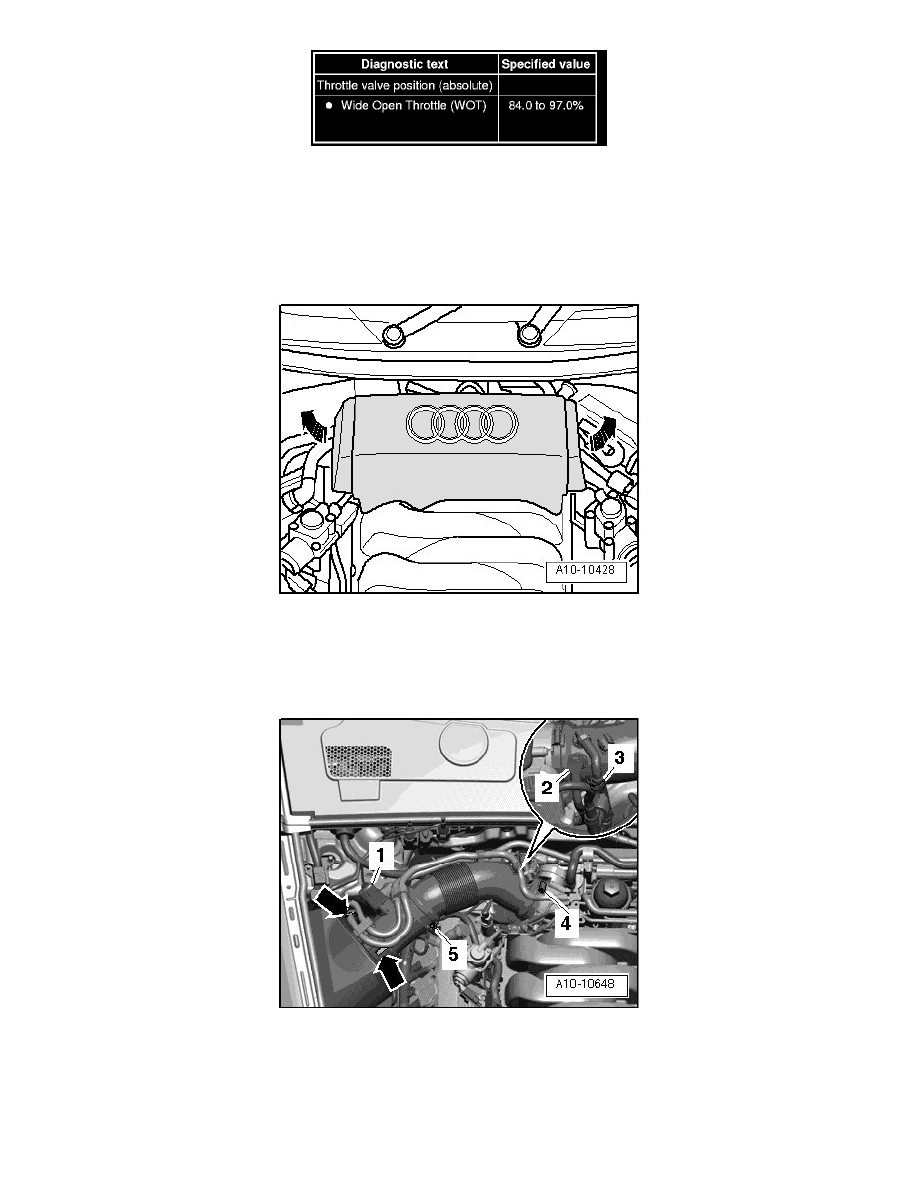

End diagnosis and switch ignition off.
If the specified values are not obtained:
Procedure
-
Remove the rear engine cover - arrows -.
-
Remove the vacuum lines - 2 -, - 3 - and - arrows - from the air guide hose.
-
Disconnect the Mass Air Flow (MAF) Sensor (G70) electrical harness connector - 1 -.
-
Loosen the hose clamps - 4 - and - 5 - and remove the air guide hose.
-
Disconnect the Throttle Valve Control Module (J338) electrical harness connector - 1 -.
