A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2822006.png)
-

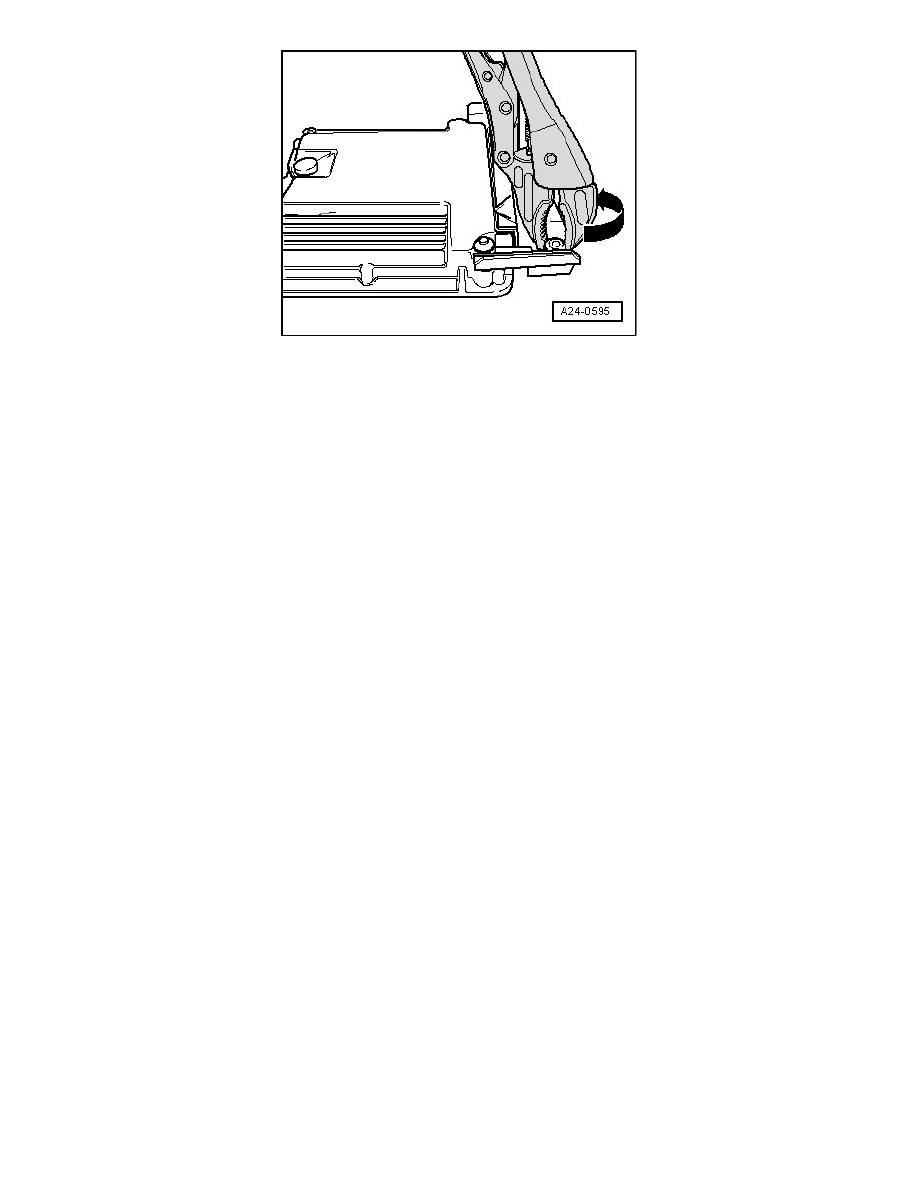

The shear bolts installed in the engine control module do not need to be heated for removal.
-
Disconnect metal retainers from the ECM connectors.
-
Disengage the connectors from the engine control module and disconnect the connector.
-
Remove old Engine Control Module (ECM) (J623) and install the Engine Control Module (ECM) (J623).
Installing
Install in reverse order of removal.
-
After that, the Engine Control Module (ECM) (J623) must be equipped with the metal retainer.
-
Clean threaded holes for shear bolts of locking compound residue. Cleaning can be performed with a thread cutter (tap).
-
Always use new shear bolts.
-
Clip the cowl panel trim into the retainers on the windshield.
The procedures to follow after connecting the new ECM are described in Guided Fault-Finding and Guided Functions.
