A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2823002.png)
-

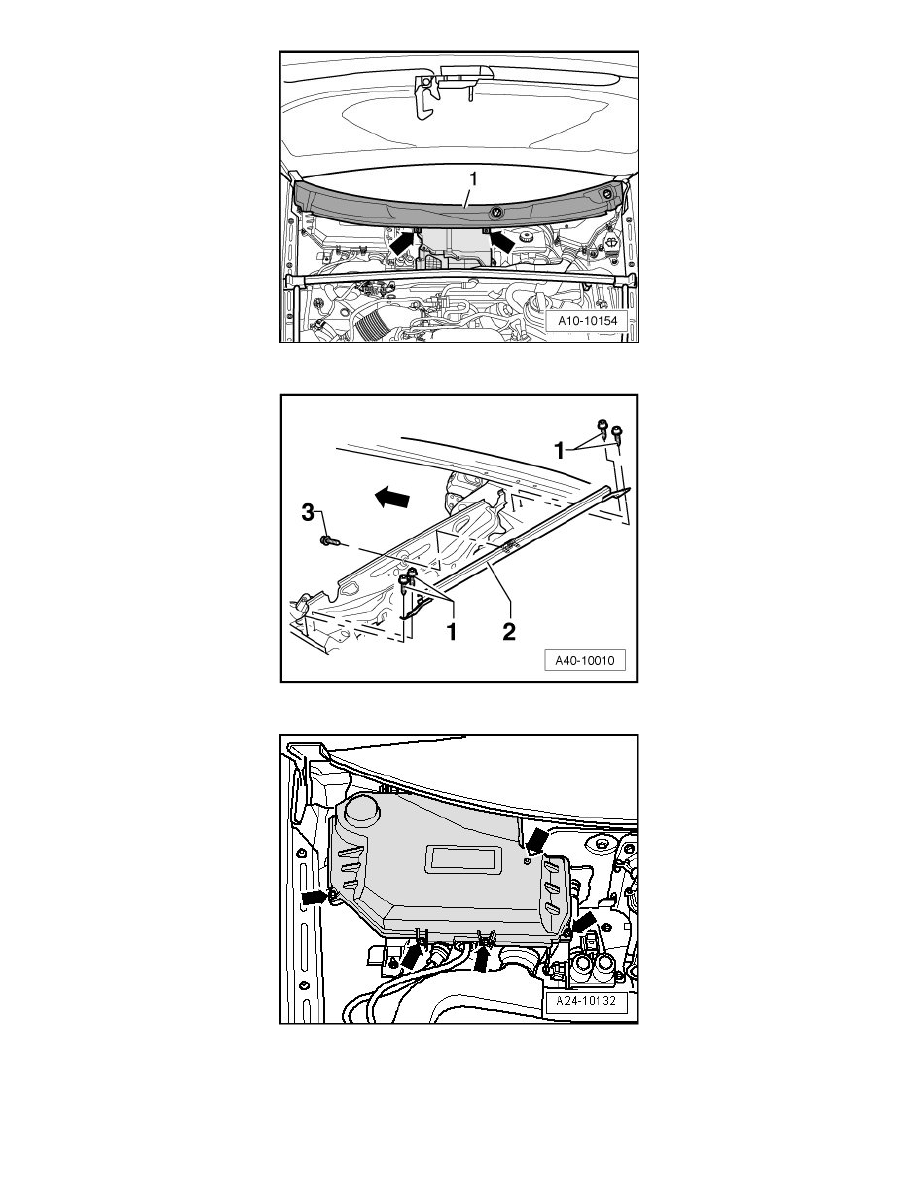

Remove the screws - 1 and 3 - and dome braces - 2 - if equipped.
-
Remove the screws - arrows - and E-box cover.
-
Using a screwdriver- arrows 1 and 2 -, remove the retaining clip - 3 - and Engine Control Module (ECM) (J623) from E-box.
