A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2963001.png)
Air Injection Control Valve: Testing and Inspection
Secondary Air injection Combination Valve, Checking
Work procedure
‹› Hose connections properly sealed.
-

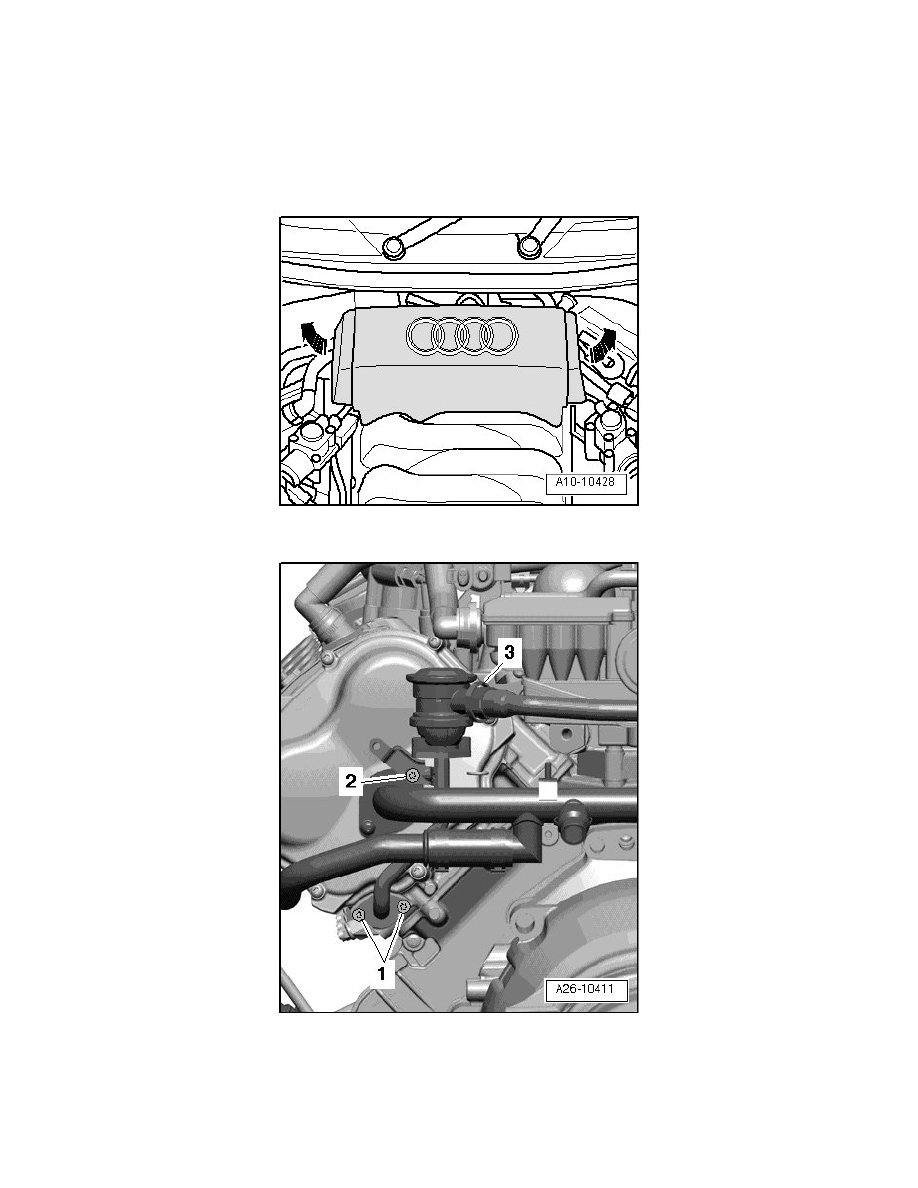

Pull rear engine cover - arrows - off.
-
Disconnect air guide hose - 3 - from Secondary Air Injection (AIR) combi-valve.
‹› The left combination valve for Secondary Air Injection (AIR) is depicted in the illustration.
‹› Ignore items - 1 and 2 -.
-
Connect an assisting hose - arrow - to Secondary Air Injection (AIR) combi-valve.
