A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2989001.png)
Leak Detection Pump: Testing and Inspection
Leak Detection Pump, 8-Cylinder MPI, Checking
Leak Detection Pump, 8-Cylinder MPI, Checking
Special tools, testers and auxiliary items required
‹› Hand-held multimeter (V.A.G 1526C)
‹› Voltage tester (V.A.G 1527B)
‹› Connector test set (V.A.G 1594C)
‹› Adapter cable, 121-pin (V.A.G 1598/31)
‹› Vehicle diagnostic, testing, and information system (VAS 5051B) with Diagnostic Cable (VAS 5051/5A)
Procedure
‹› Ignition switched on.

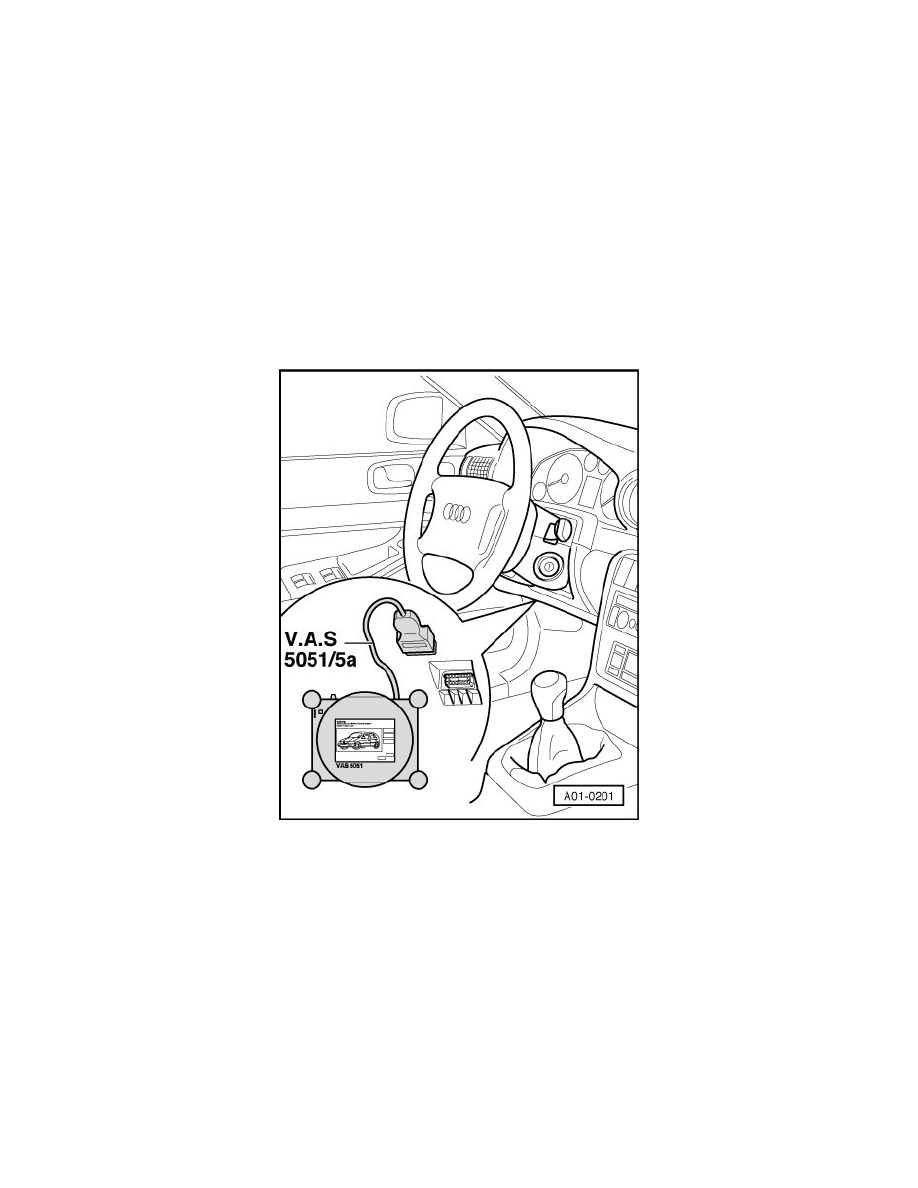

‹› (VAS 5051B) connected with (VAS 5051/5A), Vehicle Self-Diagnosis selected.
Check Activation
