A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 1
background image

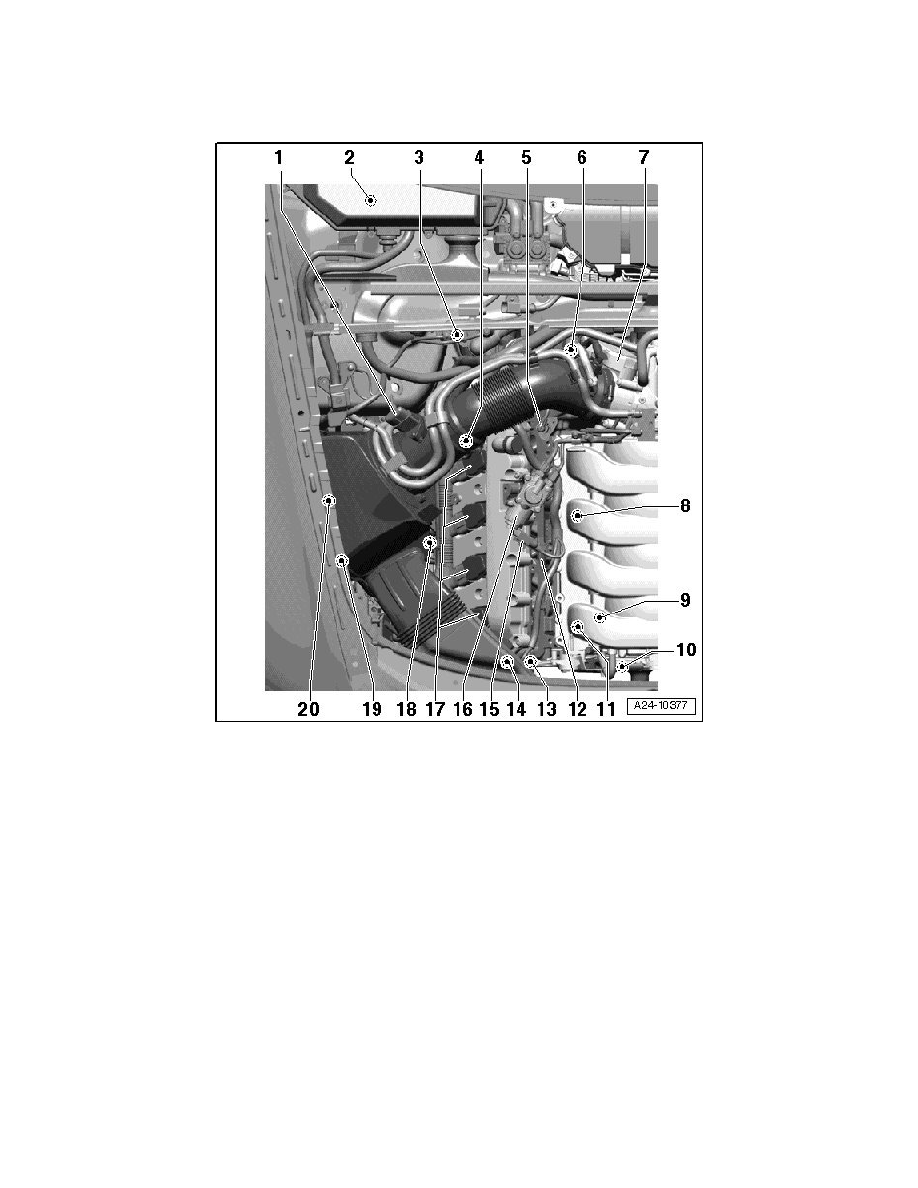

Air Flow Meter/Sensor: Locations

Component Locations Overview

Right side of the engine compartment

1 - Mass Air Flow (MAF) Sensor (G70)/Intake Air Temperature (IAT) Sensor (G42)
