Remove O-ring from fuel injector.
-

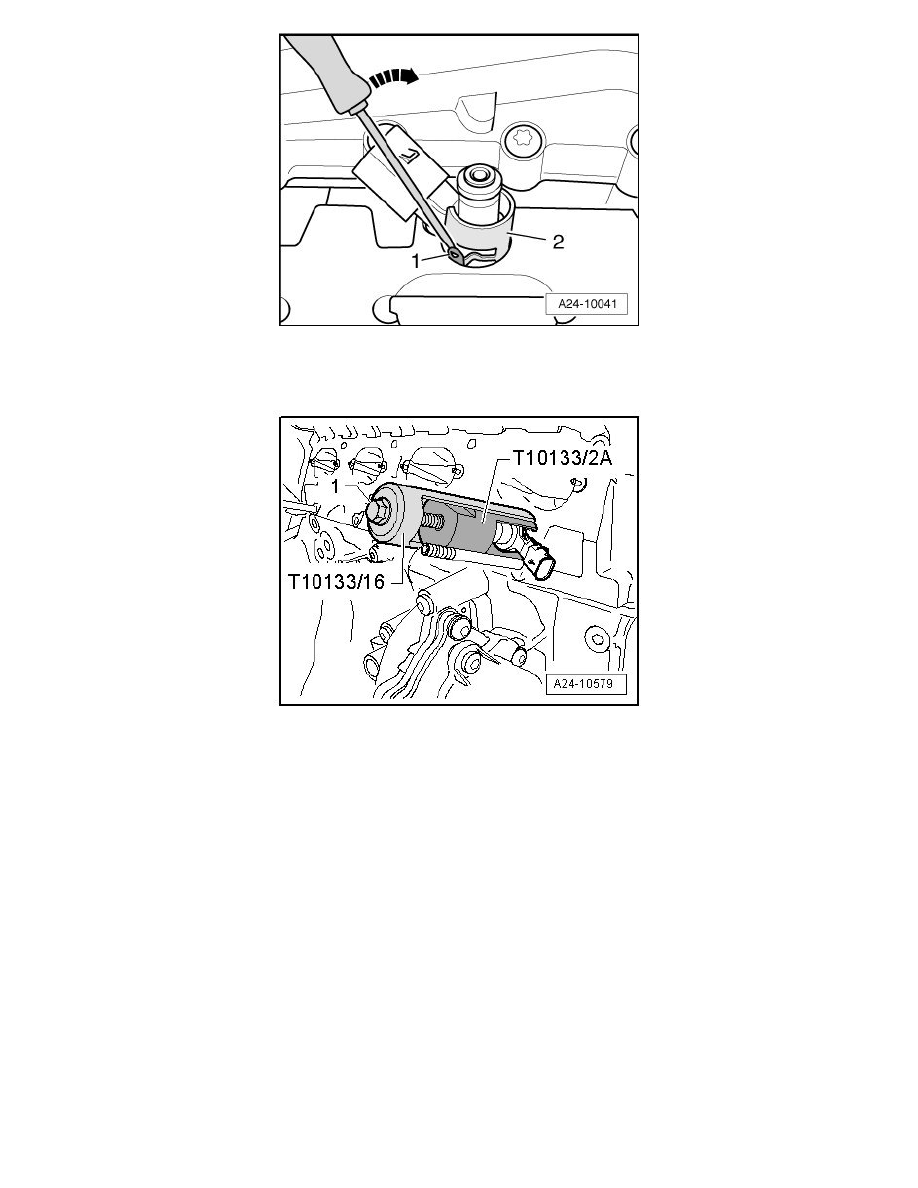

Guide the Puller (T10133/2A) in the groove on the fuel injector.
-
Then position the Removal tool (T10133/16) and remove the fuel injector by loosening the bolt - 1 -.
‹› When setting the puller in place, the radial adjustment can be destroyed, because the retaining tabs break.
-
Carefully remove the old combustion chamber seal - arrow -, thereby cutting seal open with a knife or spreading seal open with a small
screwdriver and pulling it forward and off.
