A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 1
background image

Throttle Position Sensor: Locations

Component Locations Overview

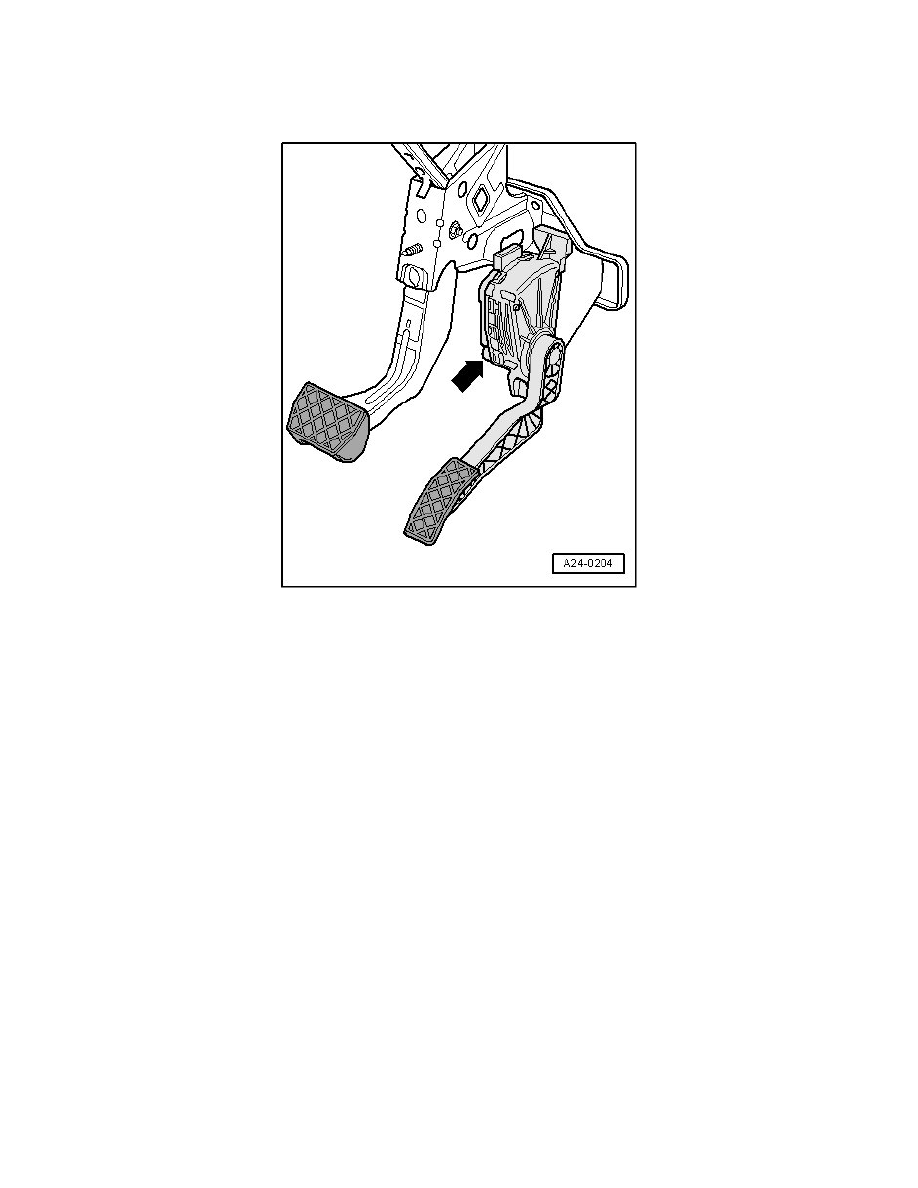

Component location Throttle Position (TP) Sensor (G79)/Accelerator Pedal Position Sensor 2 (G185)
