A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-4320003.png)
-

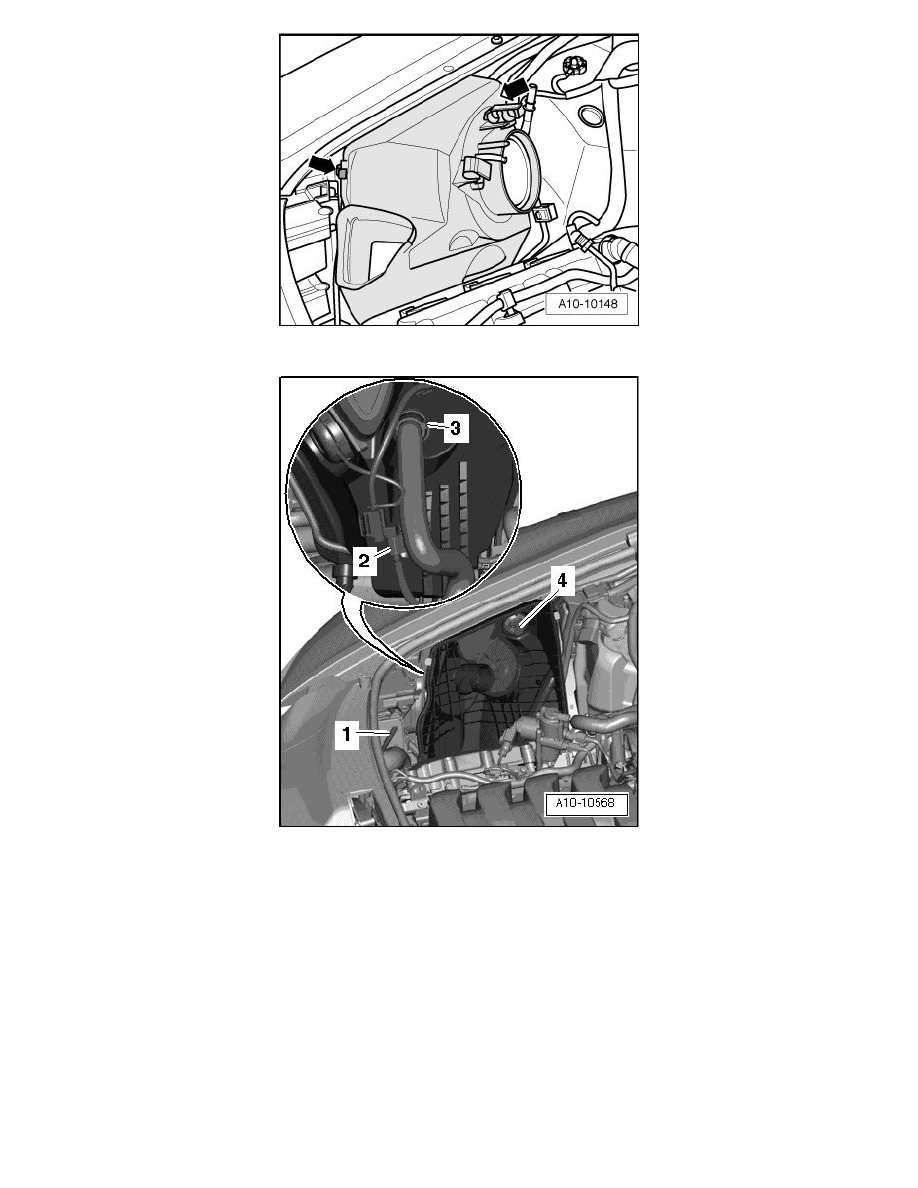

Disconnect vacuum line - 1 -.
-
Remove pin of expanding clip - 4 -.
-
Remove lower air filter housing and disconnect electrical harness connector - 2 - at rear from Exhaust Gas Recirculation (EGR) Cooler
Switch-Over Valve (N345).
-
Remove air guide hose - 3 - for Secondary Air Injection (AIR) pump, press release buttons to do so.
-
Secure Adapter (10 - 222 A /4) using binder (T40091/3) as well as supports (T40093/1) and (T40093/2) at suspension strut domes.
