ACC Sensor, Assembly Overview|Page 13319 > < ACC Sensor, Assembly Overview|Page 13317

A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 6
background image

-

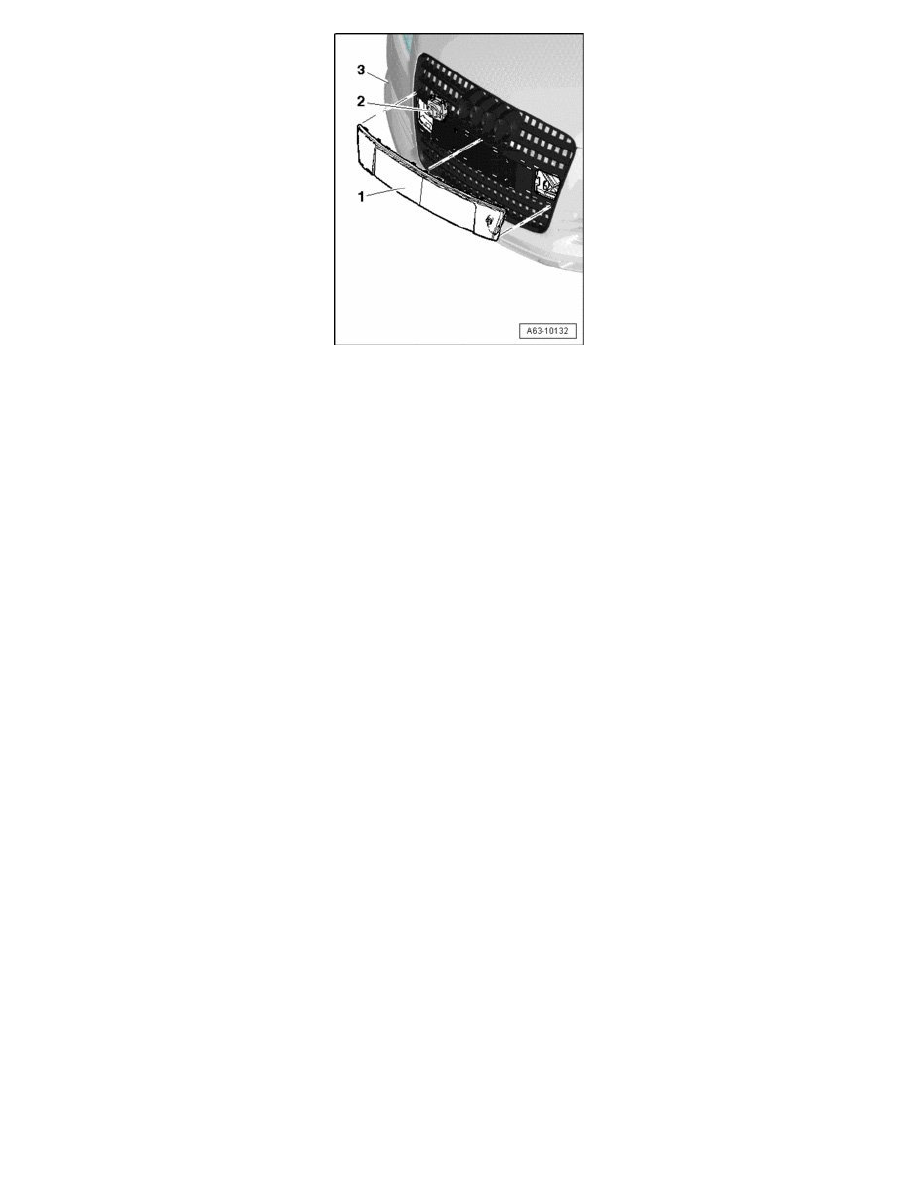

Install radar cover - 1 - at bumper - 3 -.

-

When installing radar cover - 1 -, make sure electrical wire does not slide over sensor lens - 2 -.
