Suspension Control Pressure Sensor/Switch: Service and Repair
Rear Suspension

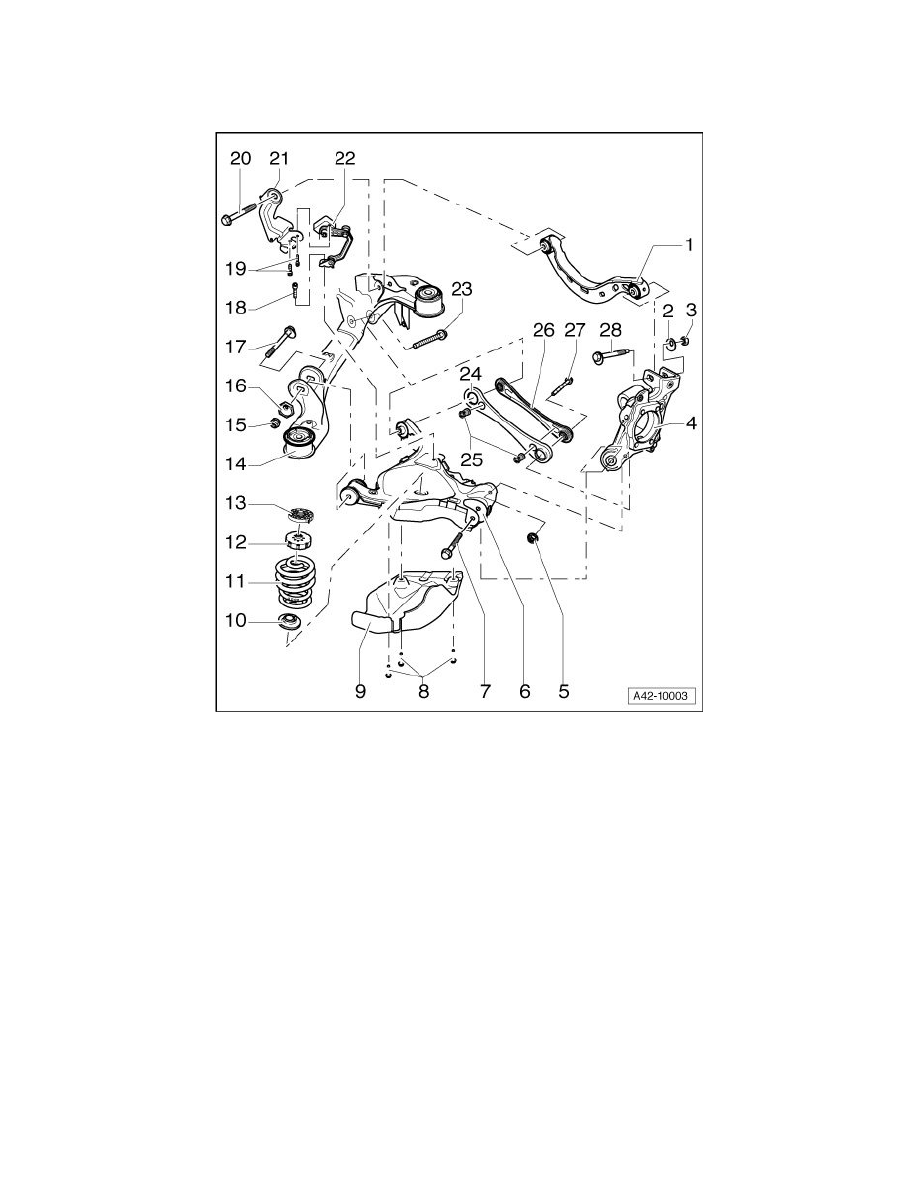

Trapezoidal Control Arm, Upper Control Arm, Tie Rod, Coil Spring and Level Control System Sensor Assembly Overview

1

Upper control arm

‹› Removing and installing, refer to => [ Upper Transverse Link ] See: Suspension/Control Arm/Service and Repair/Removal and

Replacement/Rear Suspension/Upper Transverse Link

2

Eccentric washer

3

Nut

‹› 95 Nm

‹› Always replace after removal

4

Wheel Bearing Housing

5

Nut

6

Trapezoidal Control Arm

‹› Removing and installing, refer to => [ Trapezoidal Control Arm ] See: Suspension/Control Arm/Service and Repair/Removal and

Replacement/Rear Suspension/Trapezoidal Control Arm

7

Bolt
