A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-3477001.png)
Seals and Gaskets: Service and Repair
Torque Converter Oil Seal, Replacing
Torque converter oil seal, replacing 09L, 6 Speed AWD A/T

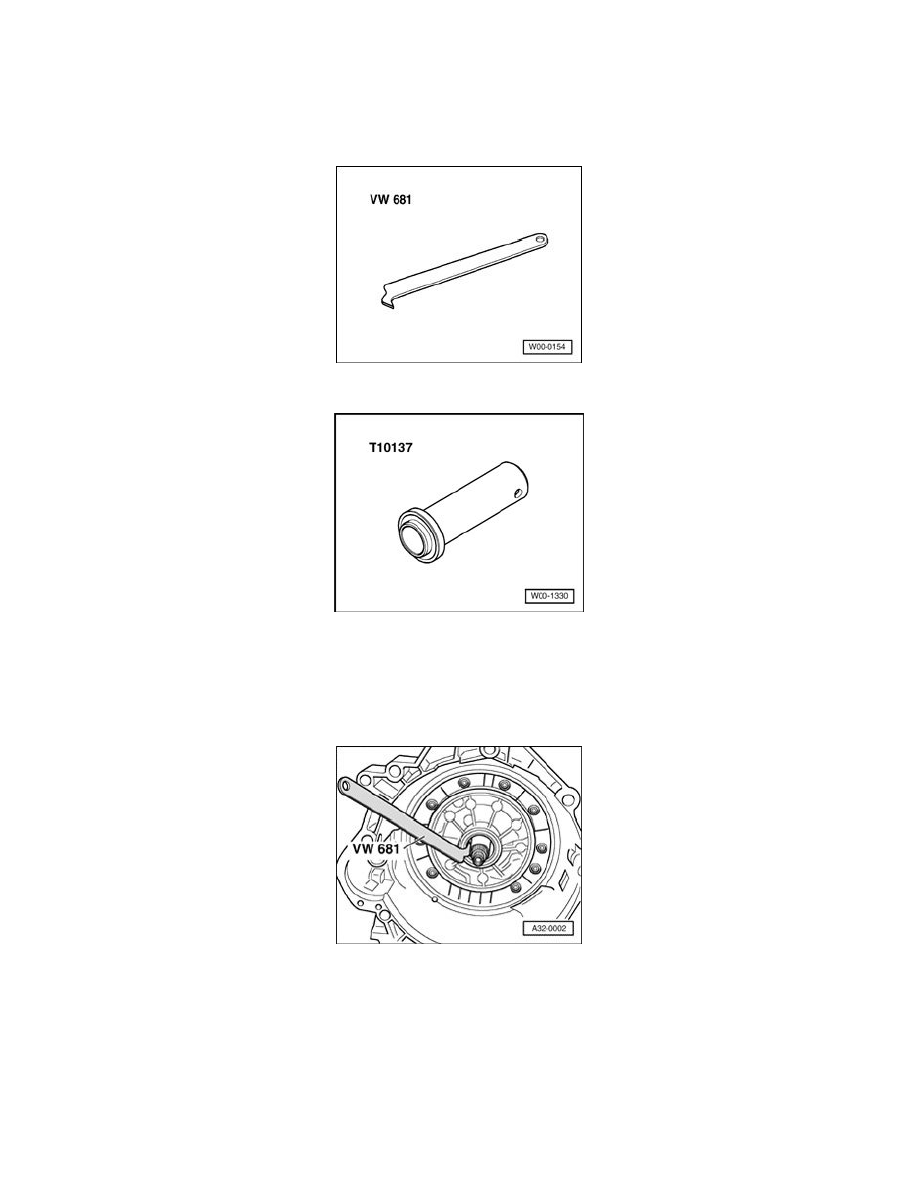

Special tools, testers and auxiliary items required
^
Extractor lever VW 681
^
Thrust piece T10137
Work procedure
-
Remove transmission.
-
Mount transmission on assembly stand.
-
Carefully pull out torque converter.
-
Remove oil seal for torque converter using oil seal extractor VW681.
-
Lightly lubricate outer circumference and sealing lips of oil seal with ATF.
^
Installation position: open side of oil seal points toward transmission
