A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-3674001.png)
Drive/Propeller Shaft: Service and Repair
Driveshaft, Removing
Driveshaft, removing Rear Differential 01R

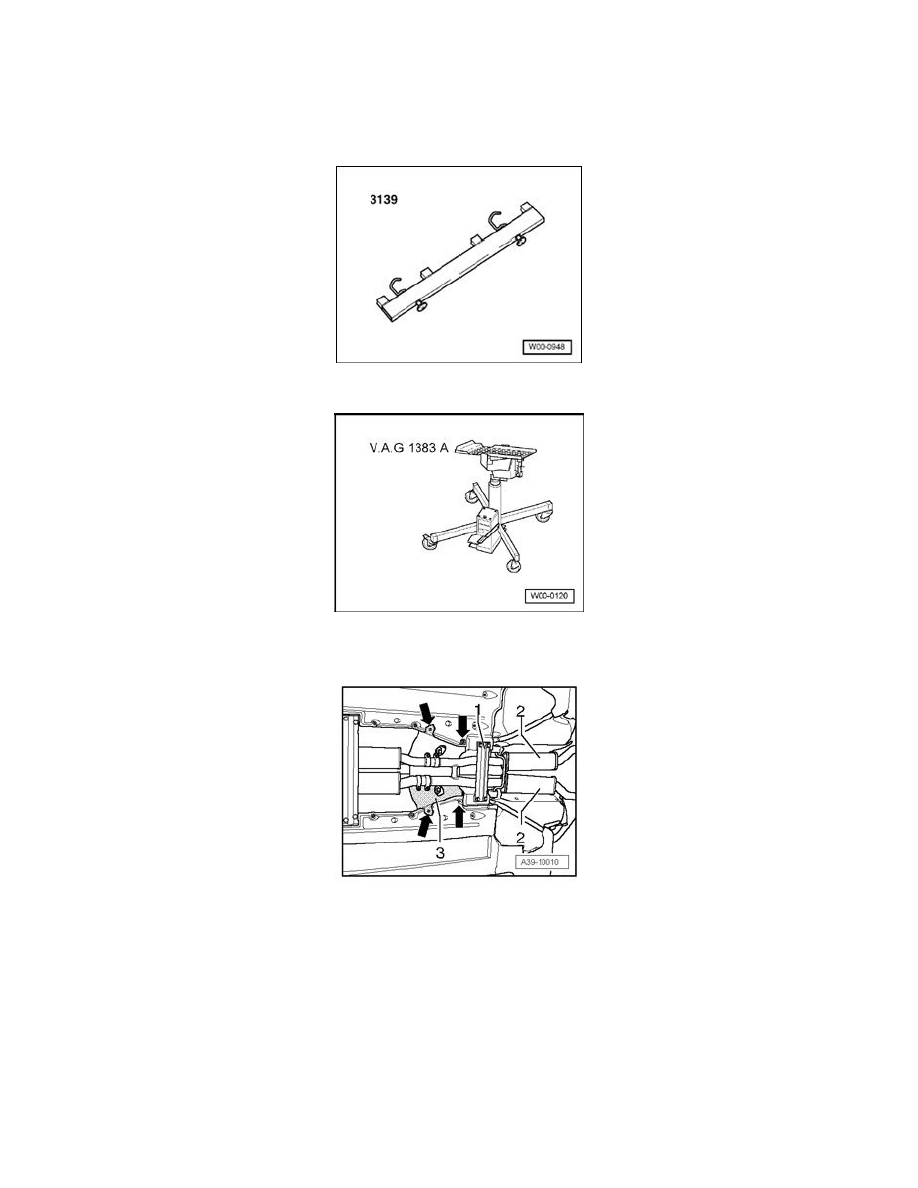

Special tools, testers and auxiliary items required
^
Alignment fixture 3139
^
Engine/transmission jack V.A.G. 1383A with universal transmission adapter V.A.G. 1359/2
^
A twin post vehicle hoist should be used when working on the driveshaft.
-
Remove rear tunnel brace - 1 -.
-
Remove rear section of exhaust system - 2 - behind clamps.
-
Remove heat shield - 3 - from vehicle underbody - arrows -.
