A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-3652001.png)
Constant Velocity Joint: Removal and Replacement
108 mm Inner CV Joint, Servicing
108 mm Inner CV Joint, Servicing
Special tools, testers and auxiliary items required
‹› Thrust plate (VW 401)
‹› Thrust plate (VW 402)
‹› Punch (VW 409)
‹› Support sleeve (VW 522)
‹› Clamp (40 - 204 A)
Removing the 108 mm inner CV joint
-
Secure drive axle with protective covers in vise clamp.
-

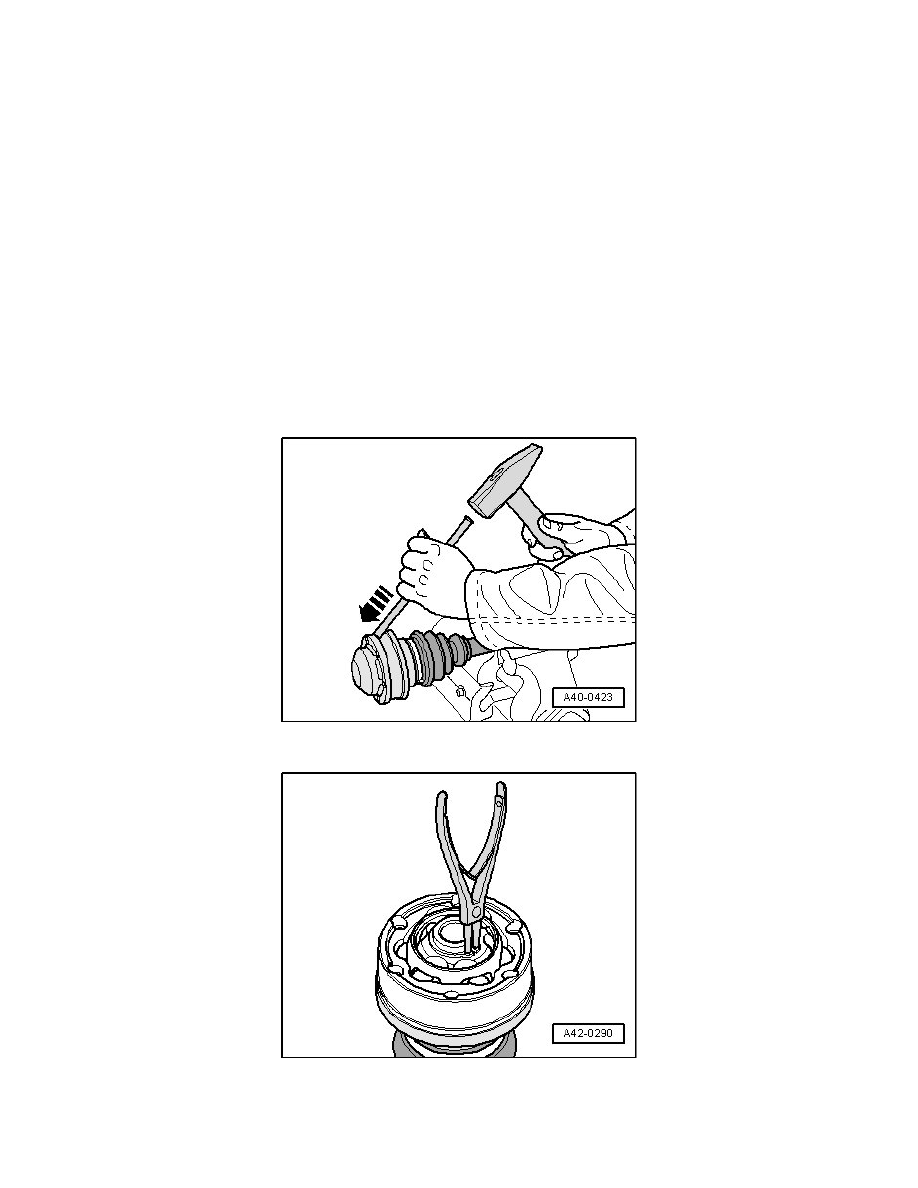

Drive cover down with copper or brass drift.
-
Remove circlip.
-
Open both clamping sleeves and remove protective joint boot from inner joint.
-
Press inner CV joint off of drive axle with special tool shown in illustration.
