A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-7177001.png)
Front Door Panel: Service and Repair

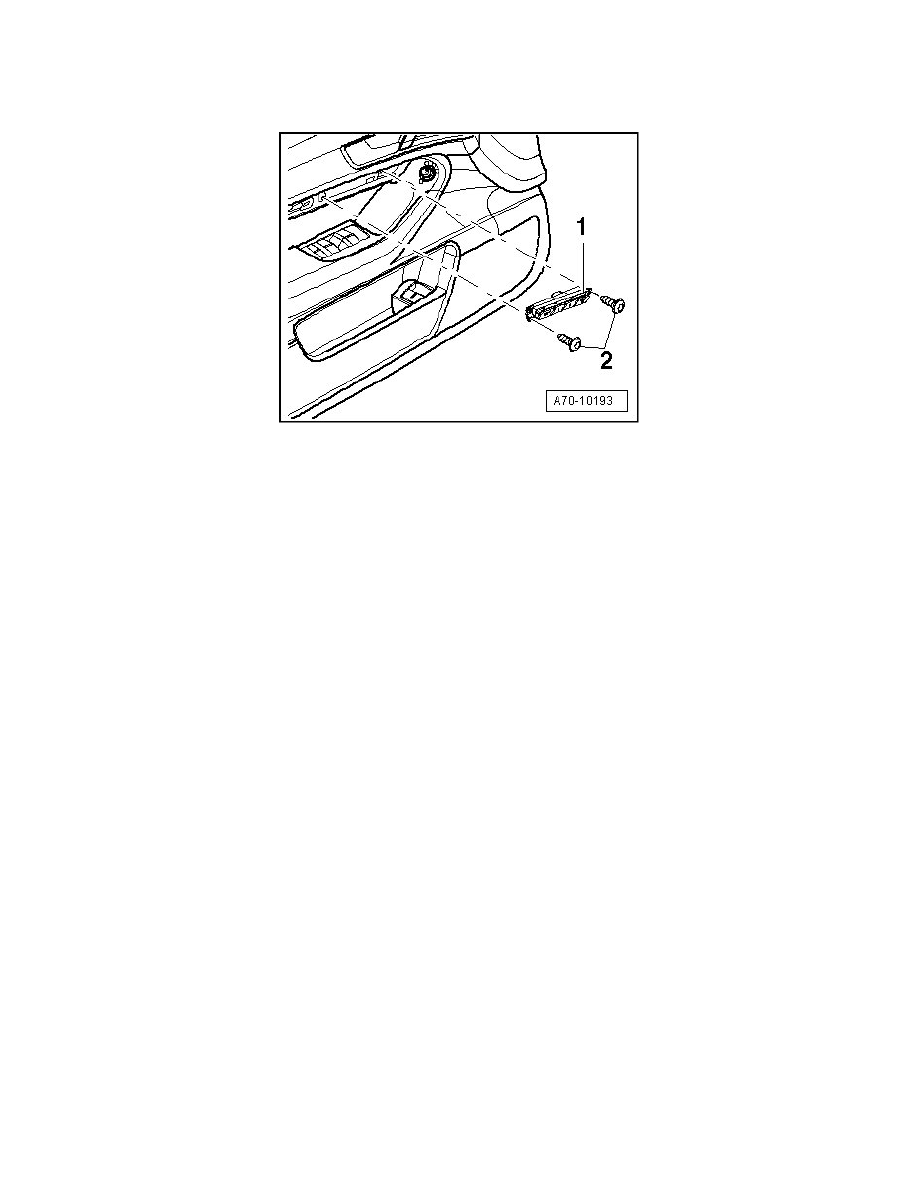

Memory Seat Control Head
Memory Seat Control Head
‹› Removing
-
Remove bolts - 2 - (Qty. 2).
-
Remove control unit - 1 -.
-
Disconnect connector.
‹› Installing
To install, perform the steps used in removal in reverse order. When doing so, note the following:
‹› Tightening specifications for bolts - 1 -: 1 Nm
