A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-7191001.png)
Front Door Panel: Service and Repair
Bass Speaker Grille
Bass Speaker Grille
‹› Removing
-
Remove door trim => [ Front Door Trim ].
-

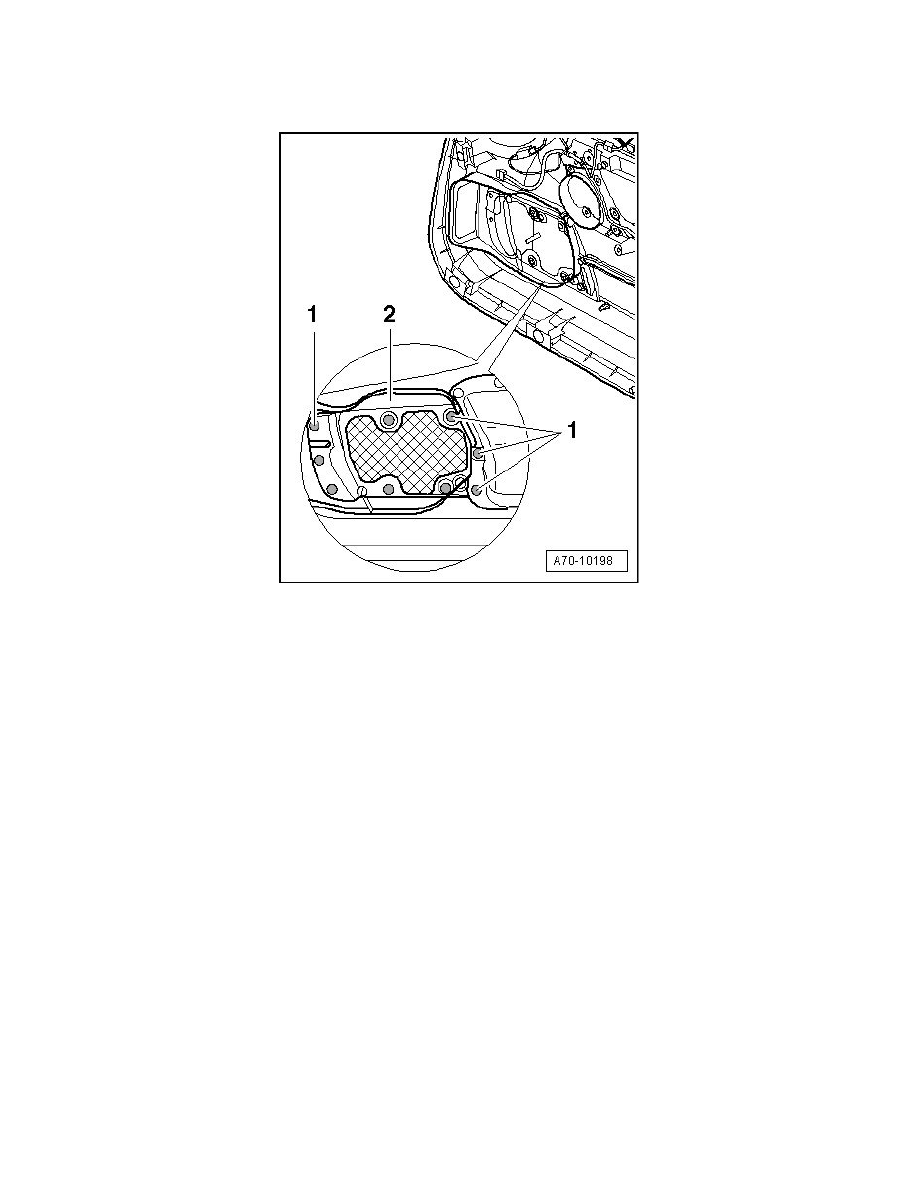

Drill out rivets - 1 - (9x).
-
Remove grille - 2 -.
‹› Installing
-
Well grille - 2 - with soldering iron to points - 1 - (9x).
