Trim Panel: Service and Repair

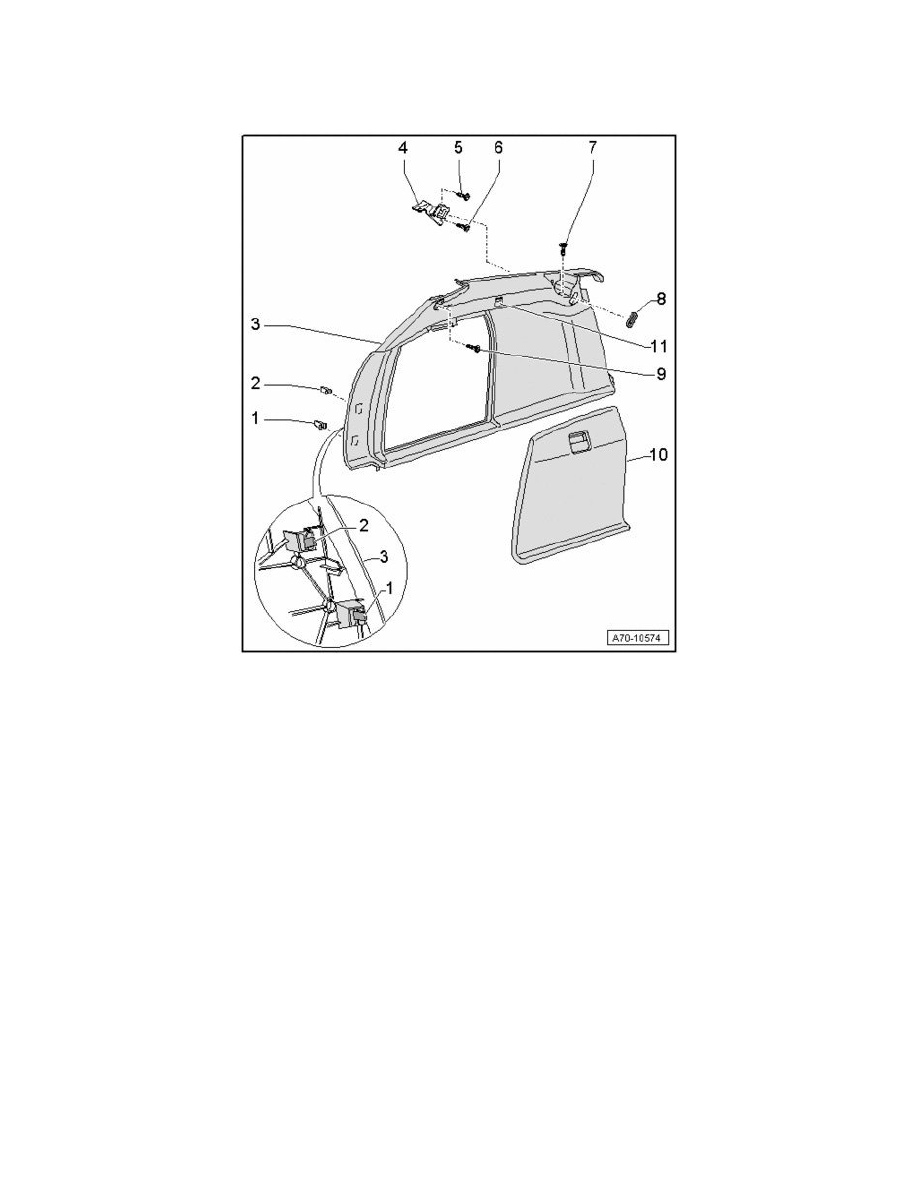

Luggage Compartment Side Trim - Assembly Overview

Luggage Compartment Side Trim - Assembly Overview

1

-

Spring clamp
-

Replace if damaged

2

-

Spring clamp
-

Replace if damaged

3

-

Side luggage compartment trim

4

-

Mount
-

For partition grille

5

-

Screw (3.5 Nm)

6

-

Screw (3.5 Nm)

7

-

Screw (3.5 Nm)

8

-

Rubber grommet
-

for partition grille mount

9

-

Screw (3.5 Nm)

10

-

Luggage compartment side trim panel

11

-

Folding hook
