Utility Storage Compartment: Service and Repair
Luggage Compartment Partition Grille Bracket

Luggage Compartment Partition Grille Bracket

Removing

CAUTION!
Observe the safety precautions for repairs on airbags.

-

Remove the rear bench seat => [ Bench Seat ] See: Seats/Service and Repair/Removal and Replacement/Rear Seats.

-

Remove side airbag => [ Rear Seat Side Upholstery ] See: Seats/Service and Repair/Removal and Replacement/Rear Seats

-

Remove luggage compartment side trim => [ Luggage Compartment Side Trim ].

-

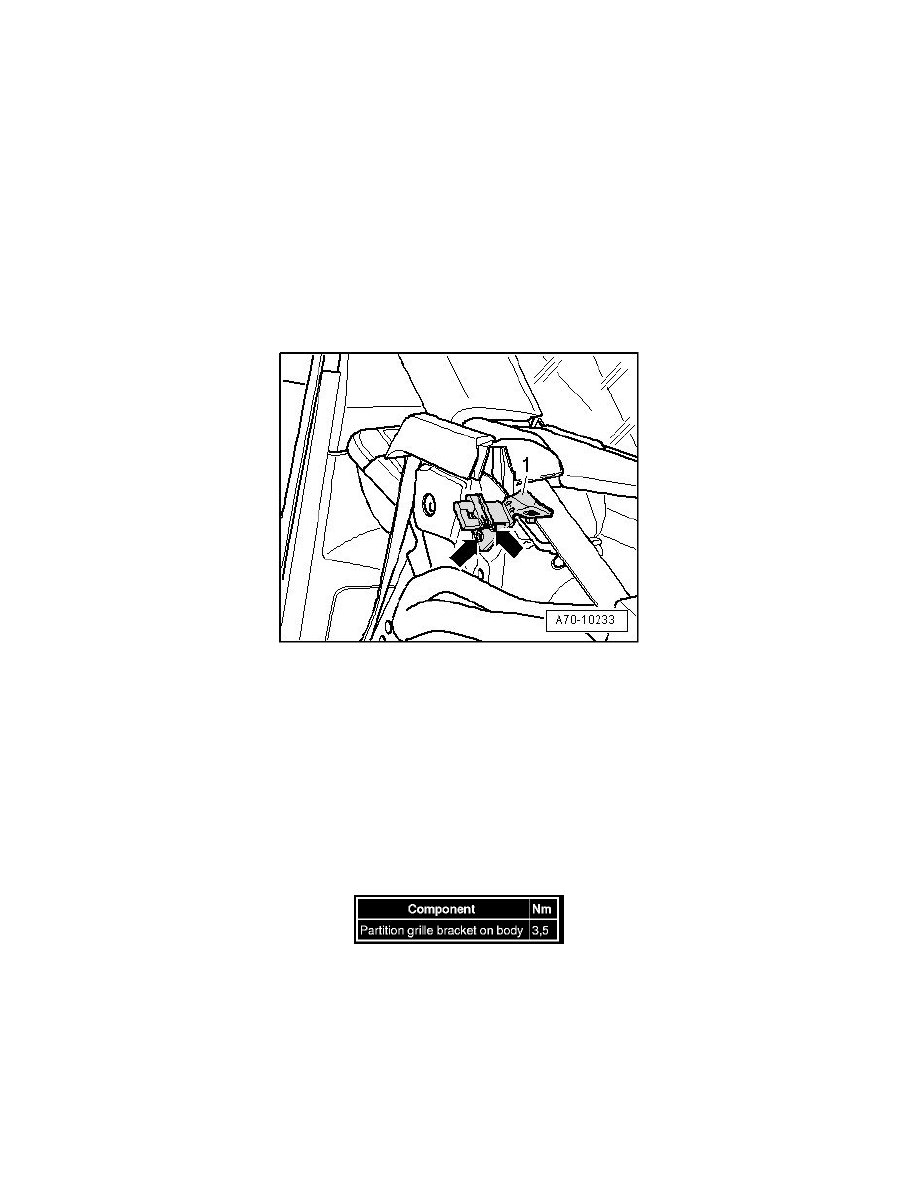

Remove bolts - arrows -.

-

Remove partition grille bracket - 1 -.

Installing

Installation is reverse of removal, but note the following:

-

Install luggage compartment side trim => [ Luggage Compartment Side Trim ].

-

Install side airbag => [ Rear Seat Side Upholstery ] See: Seats/Service and Repair/Removal and Replacement/Rear Seats

-

Install the rear bench seat => [ Bench Seat ] See: Seats/Service and Repair/Removal and Replacement/Rear Seats.

Tightening Specifications
