A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-7917003.png)
-

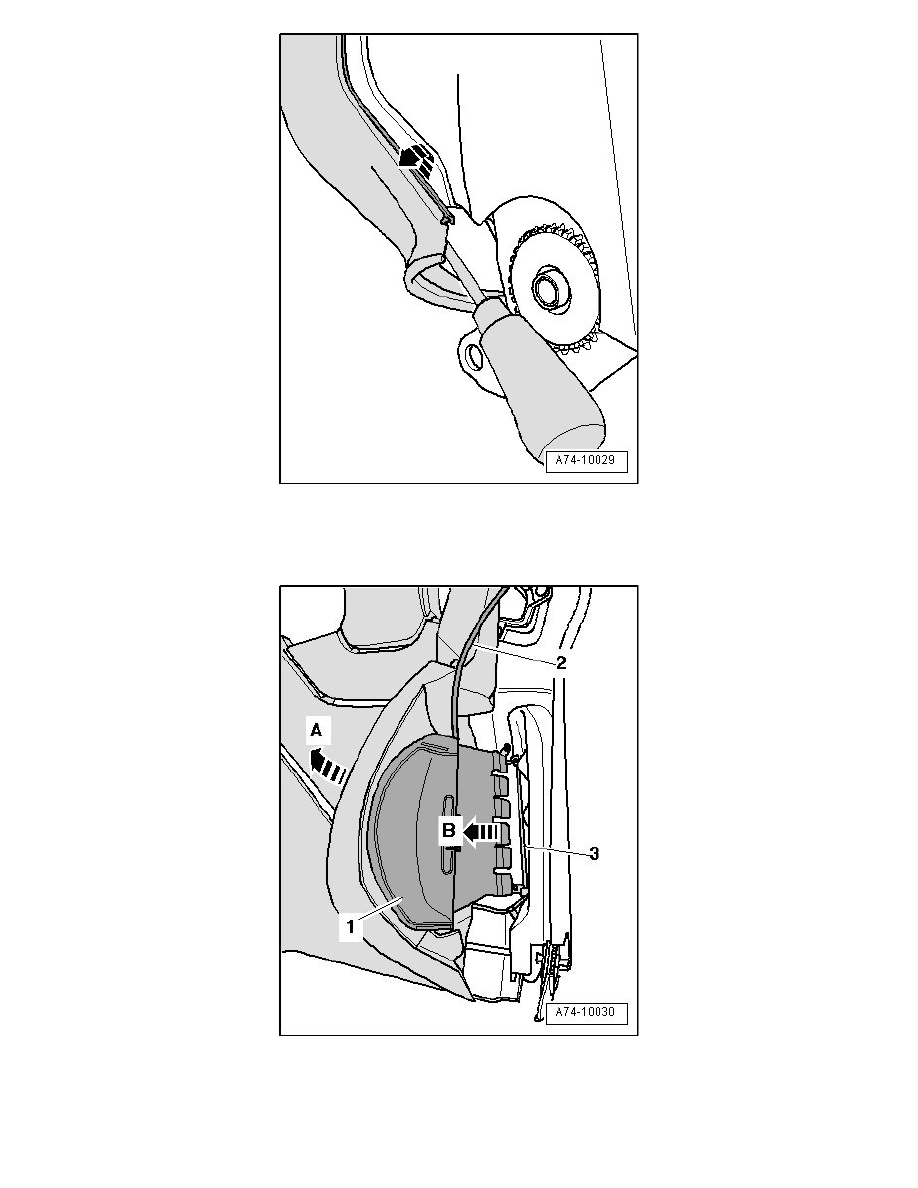

Starting at bottom, pry grip channel for backrest cover out of guide at backrest, using e.g. an awl - arrow -; lightly press together backrest
upholstery in order to release backrest cover.
Disengaging flap for backrest bolster inflation adjustment
-
Swivel backrest bolster inward - arrow A - and disengage flaps - 1 - for backrest bolster inflation adjustment at retaining bracket - 3 - of backrest -
arrow B -.
-
Disconnect pneumatic hose - 2 - to backrest bolster inflation adjustment.
