Thermostat: Service and Repair

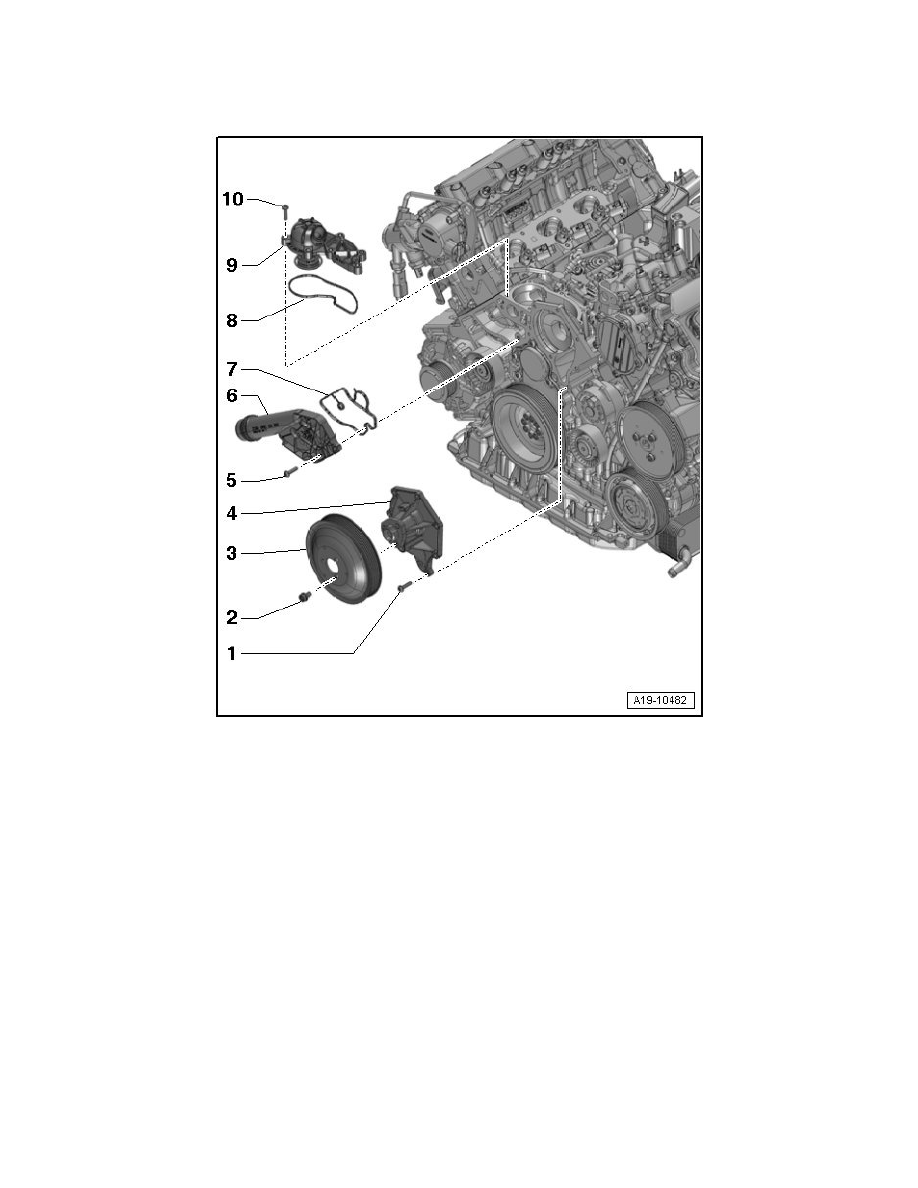

Coolant Thermostat, Coolant Pump and Connecting Piece Assembly Overview

Coolant Thermostat, Coolant Pump and Connecting Piece Assembly Overview

1

9 Nm

2

20 Nm

3

Ribbed belt pulley for coolant pump

4

Coolant pump

‹› With gasket

‹› Removing and installing, refer to => [ Coolant Pump ] See: Water Pump/Service and Repair/Coolant Pump

5

9 Nm

6

Connecting piece

‹› For coolant hose

7

Gasket

‹› Replace

8

Gasket
