A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2097002.png)
-

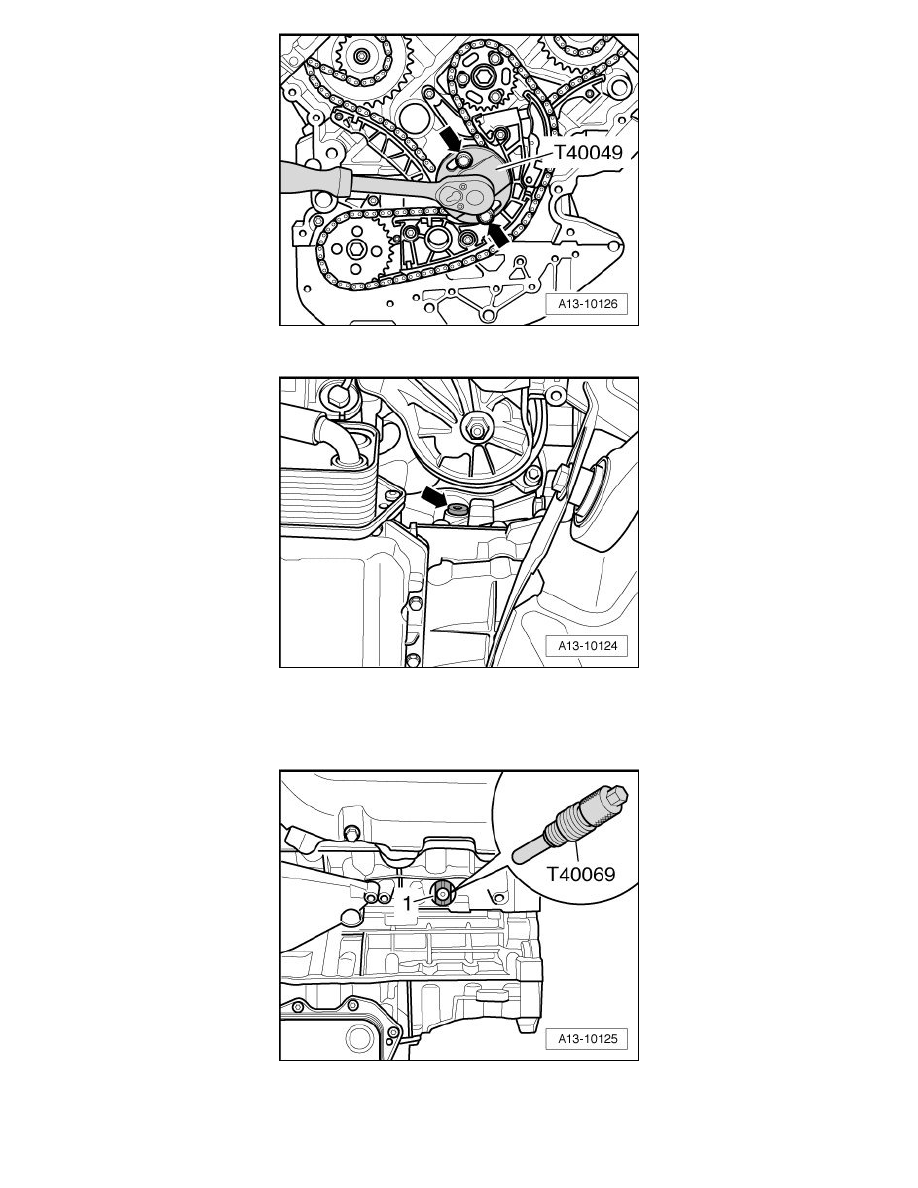

Remove sealing plug - arrow - from cylinder block.
-
Rotate crankshaft in direction of engine rotation to TDC of ignition timing.
-
Install the Crankshaft Holder (T40069) into the hole and tighten it to 20 Nm. If necessary rotate the crankshaft very slightly back and forth to
completely center the holder.
-
Mark running direction of power take-off chain with paint.
-
Press the chain tensioner guide rail in direction of - arrow - and secure chain tensioner with Locking Pin (T40071).
