A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2210006.png)

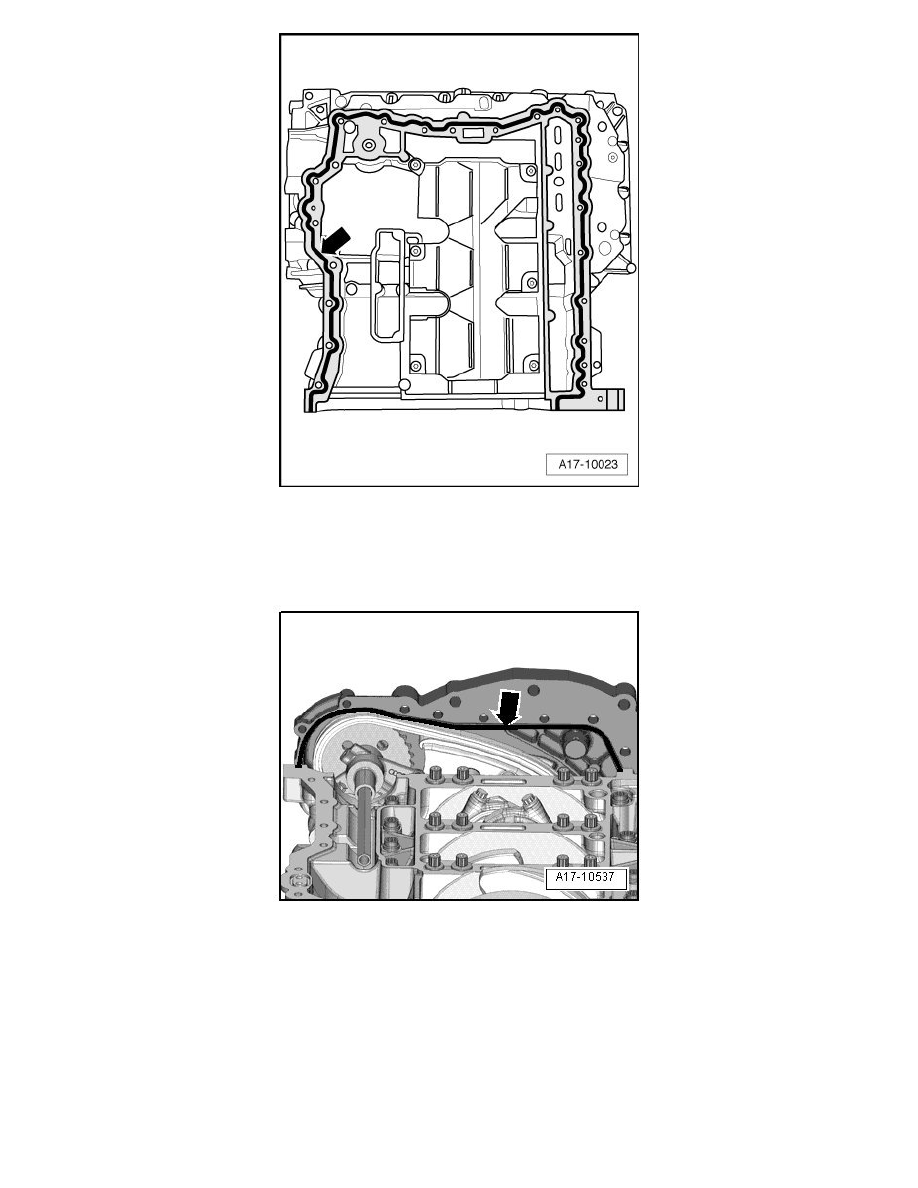

‹› The grooves - arrows - of sealing surfaces must be completely filled with sealant.
‹› The sealant bead must be 1.5 to 2.0 mm above the sealing surface.
-
Apply a sealant bead - arrow - to the clean sealing surface of the lower timing chain cover as shown in the illustration.
‹› The groove of sealing surface must be completely filled with sealant.
‹› The sealant bead must stand 1.5 to 2.0 mm above the sealing surface.
‹› The sealant bead must run all the way into the corners.
‹› Sealant bead must not be thicker than specified, otherwise sealant could get into oil pan and clog the oil pump strainer.
‹› The oil pan (upper section) must be installed within 5 minutes after application of sealant.
-
Insert the seal - 1 - and the O-ring - 2 - in the guide frame.
