A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2235001.png)
Crankshaft Main Bearing Seal: Service and Repair
Crankshaft Seal (Timing Chain Side), Replacing
Crankshaft seal (timing chain side), replacing

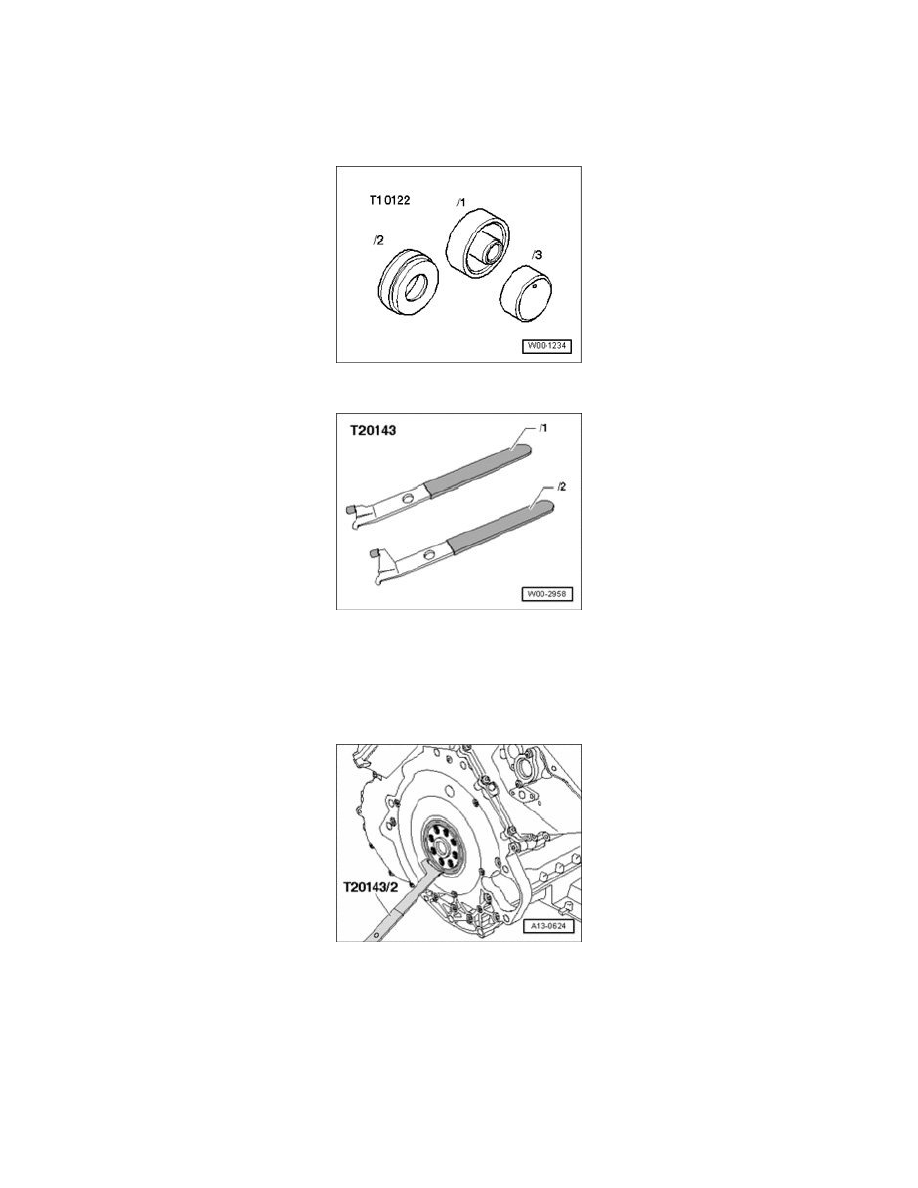

Special tools, testers and auxiliary items required
^
Pulling fixture T10122
^
Extractor lever T20143/2
Work procedure
-
Remove transmission.
-
Vehicles with multitronic transmission: Remove damper unit and flywheel.
-
Vehicles with automatic transmission 09L: Remove drive plate.
-
Pry out sealing ring using extractor lever T20143/2.
-
Clean operating and sealing surfaces.
