A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2272003.png)
-

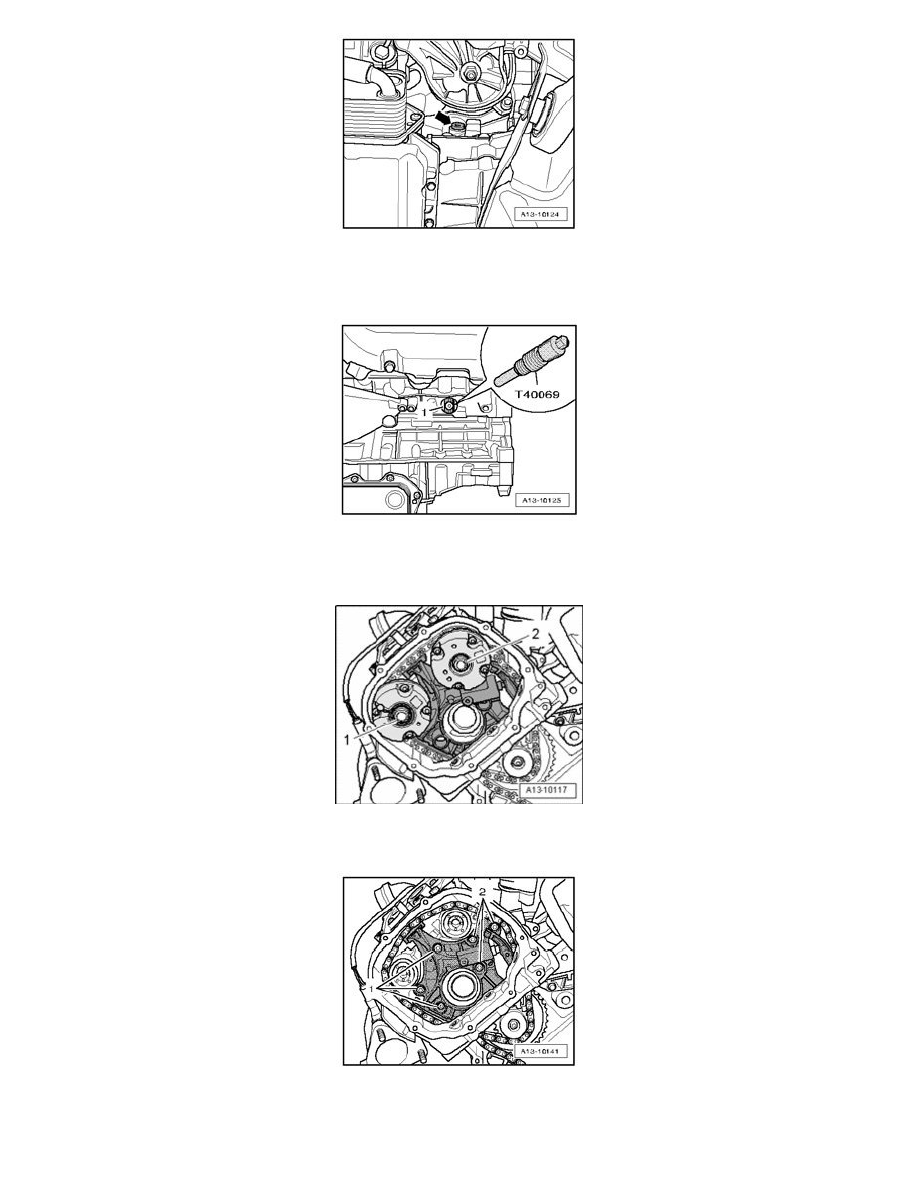

Remove sealing plug - arrow - from cylinder block.
CAUTION: Do not turn crankshaft while touching TDC hole with finger - Risk of injury.
-
Install crankshaft holder T40069 into hole - 1 - to 10 Nm, if necessary rotate crankshaft very slightly back and forth to completely center the
holder.
-
Mark running direction of left camshaft timing chain with paint.
-
Remove bolts - 1 - and - 2 - for camshaft adjuster using multipoint socket T10035.
-
Remove both camshaft adjusters.
-
Remove bolts - 1 - and - 2 - and remove chain tensioner.
-
Mark running direction of right camshaft timing chain with paint.
