A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2276002.png)
-

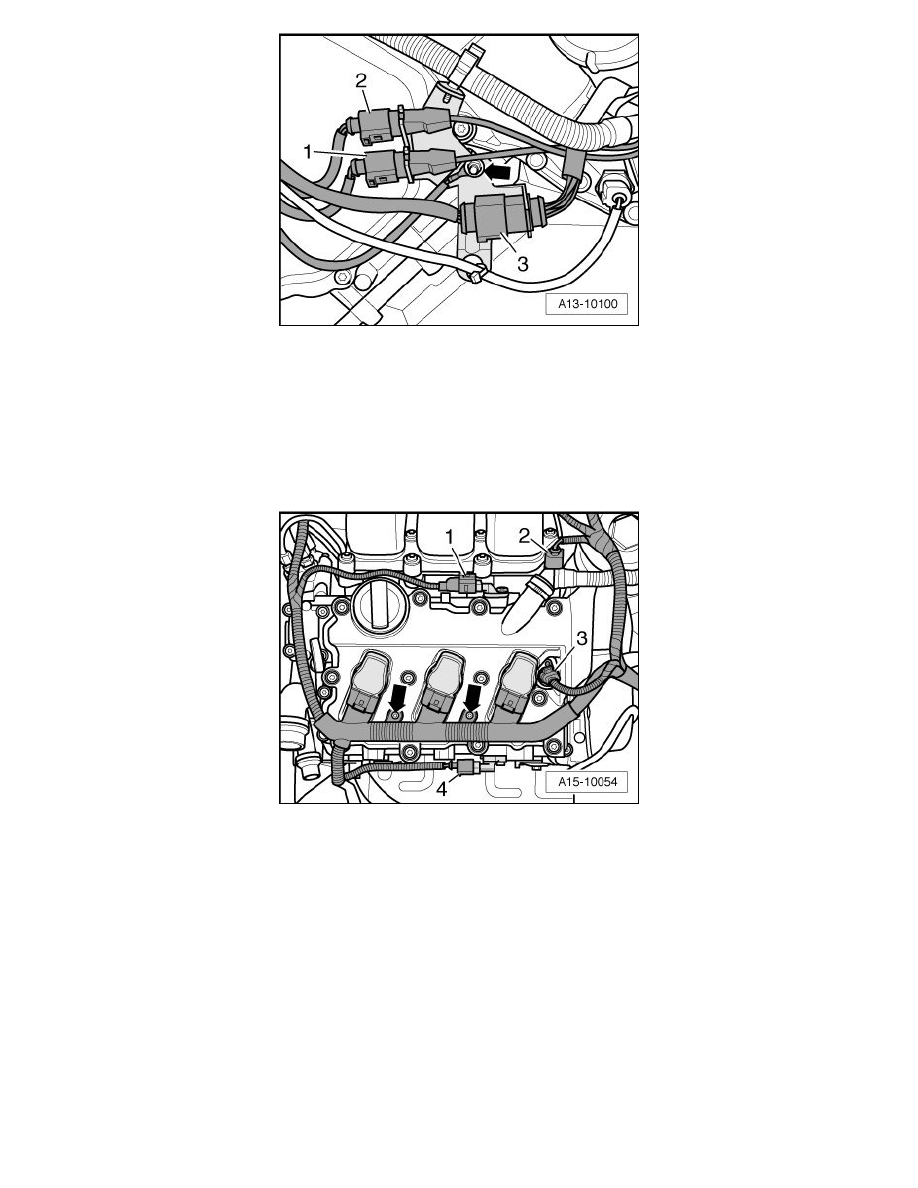

Remove nut - arrow -.
-
Remove retainer for connection - 3 -.
-
Remove the double-bolt lying beneath.
-
Remove retainer for connections - 1 - and - 2 -.
-
Remove the bolts - arrows - and separate the electrical connections at the ignition coils.
‹› Ignore items - 1 to 4 -.
-
Free up electrical wiring.
-
Remove the bolts - 1 through 8 - and then remove the left cover for the timing chain from the bond.
