A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2276006.png)

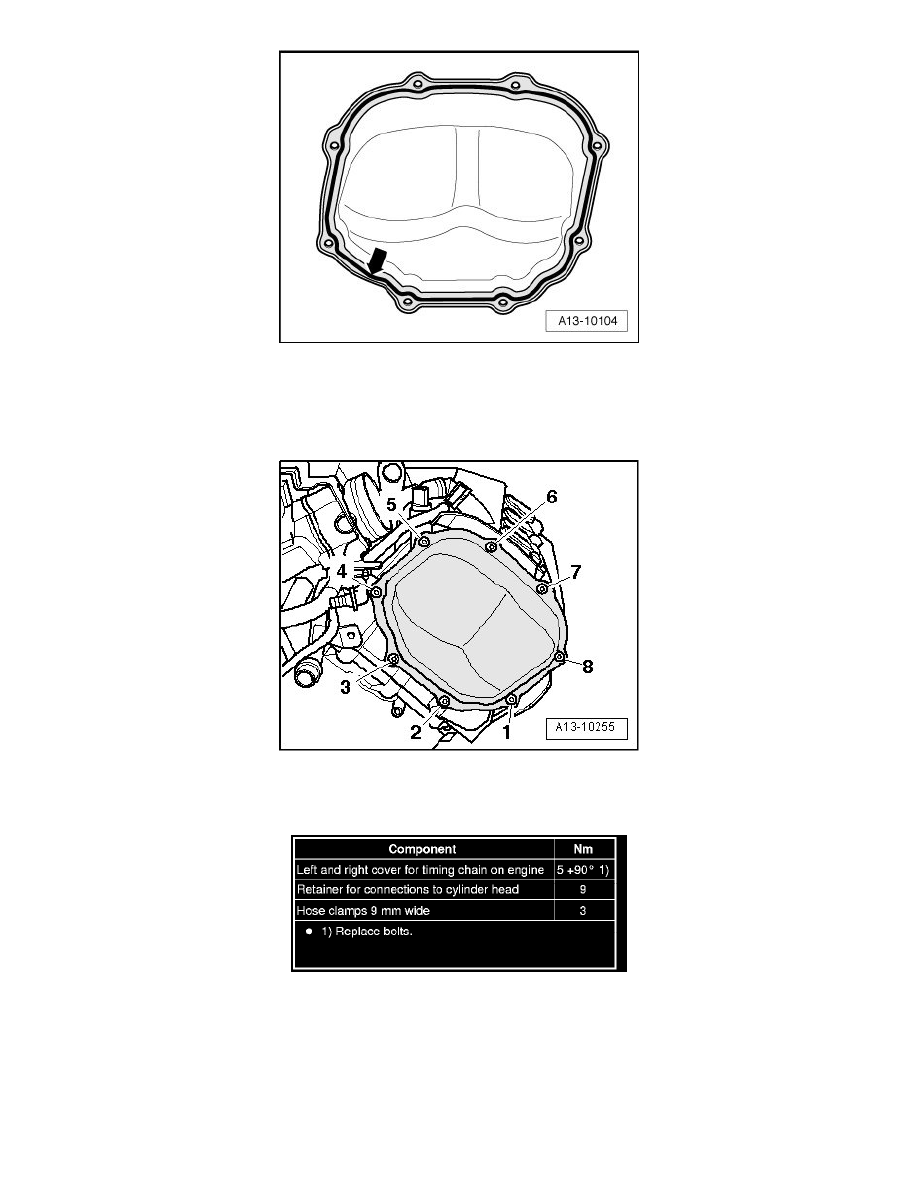

‹› The groove of sealing surface must be completely filled with sealant.
‹› The sealant bead must stand 1.5 to 2.0 mm above the sealing surface.
-
Position right timing chain cover and tighten bolts in sequence - 1 to 8 -.
Further installation is in reverse order of removal.
Tightening Specifications
