A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-5790004.png)

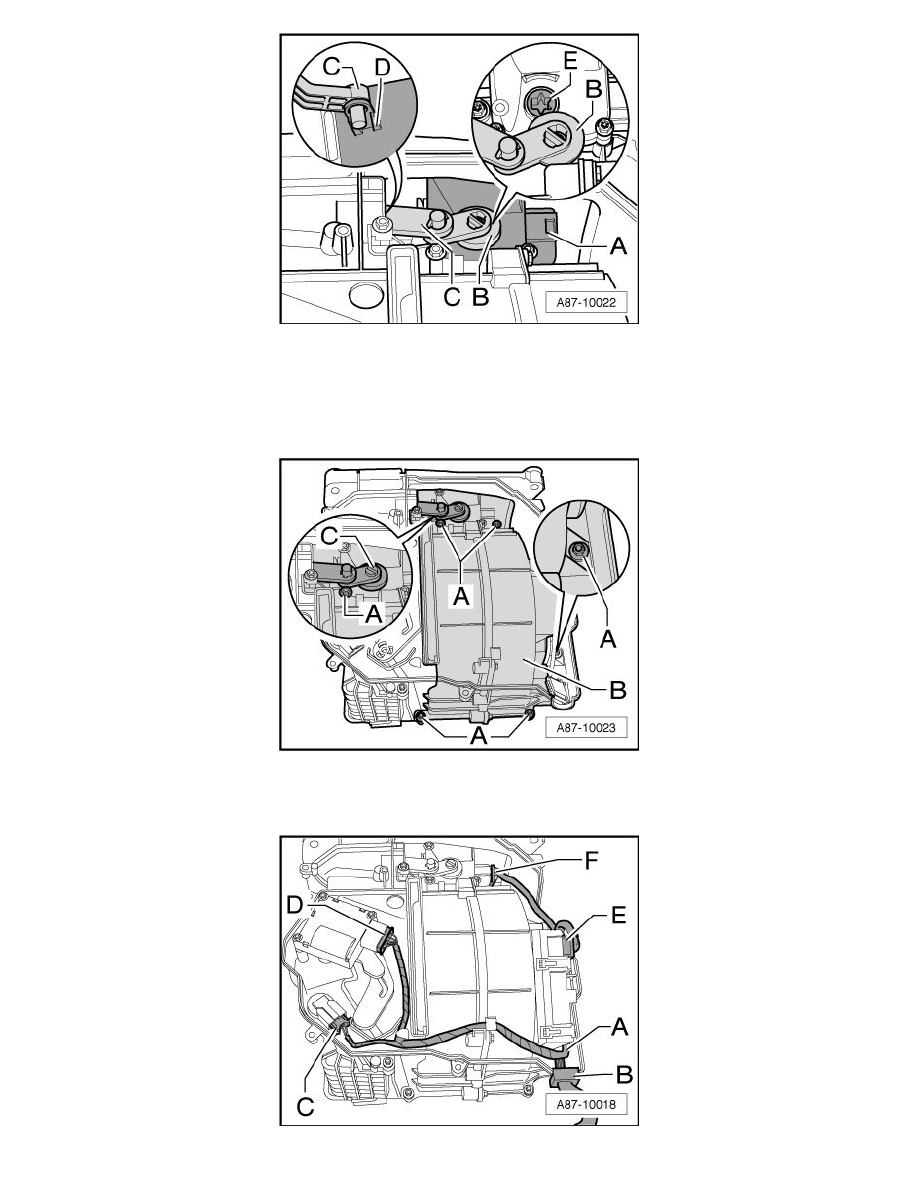

CAUTION!
The connecting rod - C - is engaged on the recirculation door lever - D -. This lever will break if it is bent over the connecting rod.
-
Check the connection between the connecting element - B - and the control motor shaft. The connecting element must be engaged.
-
Install bolts - A -.
-
Hand-tighten mounting bolts - A - (10 Nm).
-
Install the grommet - B - and wiring harness - A - according to the illustration.
