A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-5800002.png)

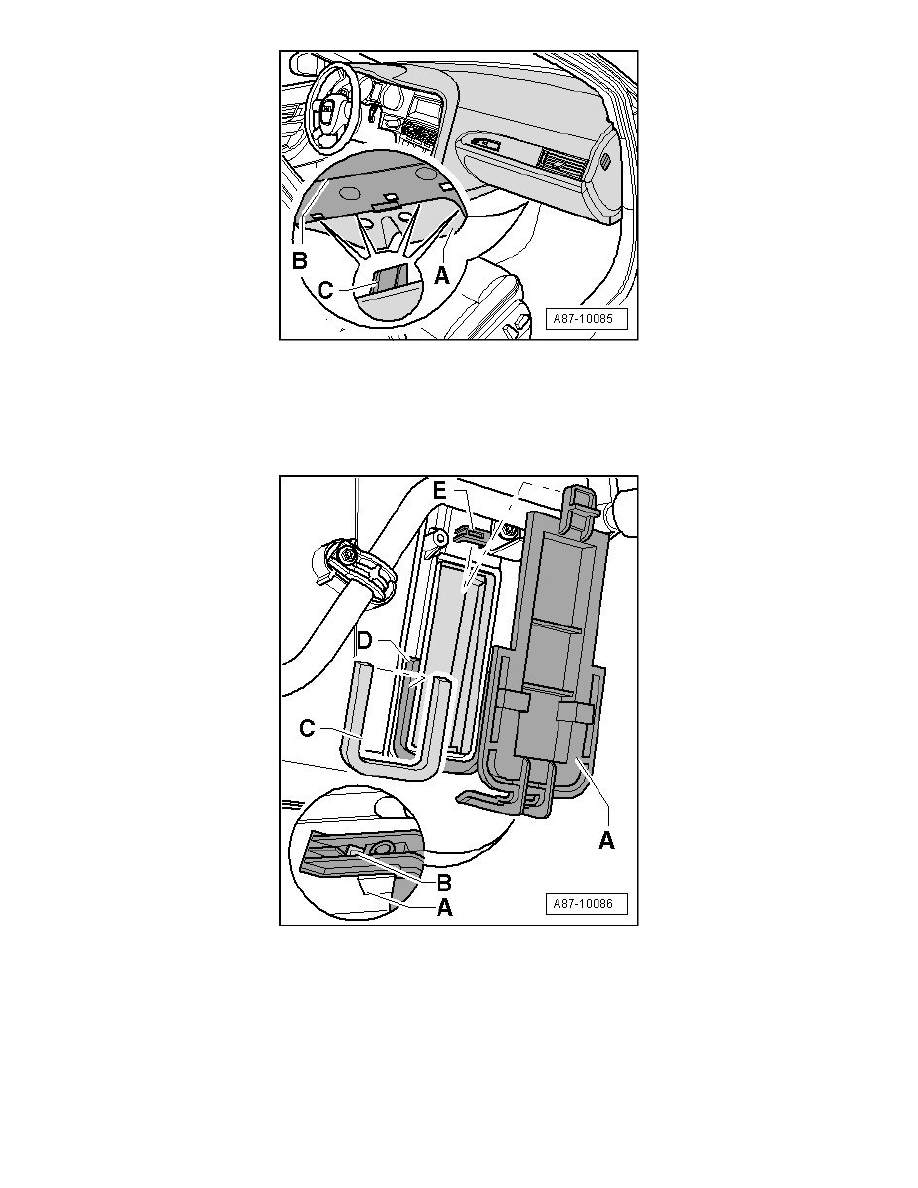

‹› The cover - A - is held in the lower cover of the glove compartment - B - by 4 catches. These catches could be difficult to loosen. Make sure not to
damage the lower cover of the glove compartment - B - during removal.
-
Cover the floor mat under the A/C unit dust and pollen filter shaft in the front passenger footwell with paper.
-
Loosen the latch- B - and remove the dust and pollen filter cover - A - from the A/C unit.
-
Remove the first section of the dust and pollen filter - A - from the A/C unit.
