A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-8612001.png)
Headlamp Bulb: Removal and Replacement
Daytime Running Light Bulb, Replacing
Daytime Running Light Bulb, Replacing
CAUTION:
-
HIGH VOLTAGE.
-
Always disconnect negative ( - ) battery terminal prior to working on parts of HID headlamp components marked with yellow "HIGH
VOLTAGE" warning symbols.
Removing
-
With ignition switched off, disconnect battery Ground (GND) wire.
Left headlamp - vehicles with 6-cyl. Gasoline engine:
-
Remove reservoir for power steering.
Right headlamp - vehicles with 6-cyl. Gasoline engine:
-
Remove air filter housing.
Right headlamp - vehicles with 4.2l MPI engine:
-
Remove air filter housing.
Right headlamp - vehicles with 4.2l FSI engine:
-
Remove air filter housing.
All:
-

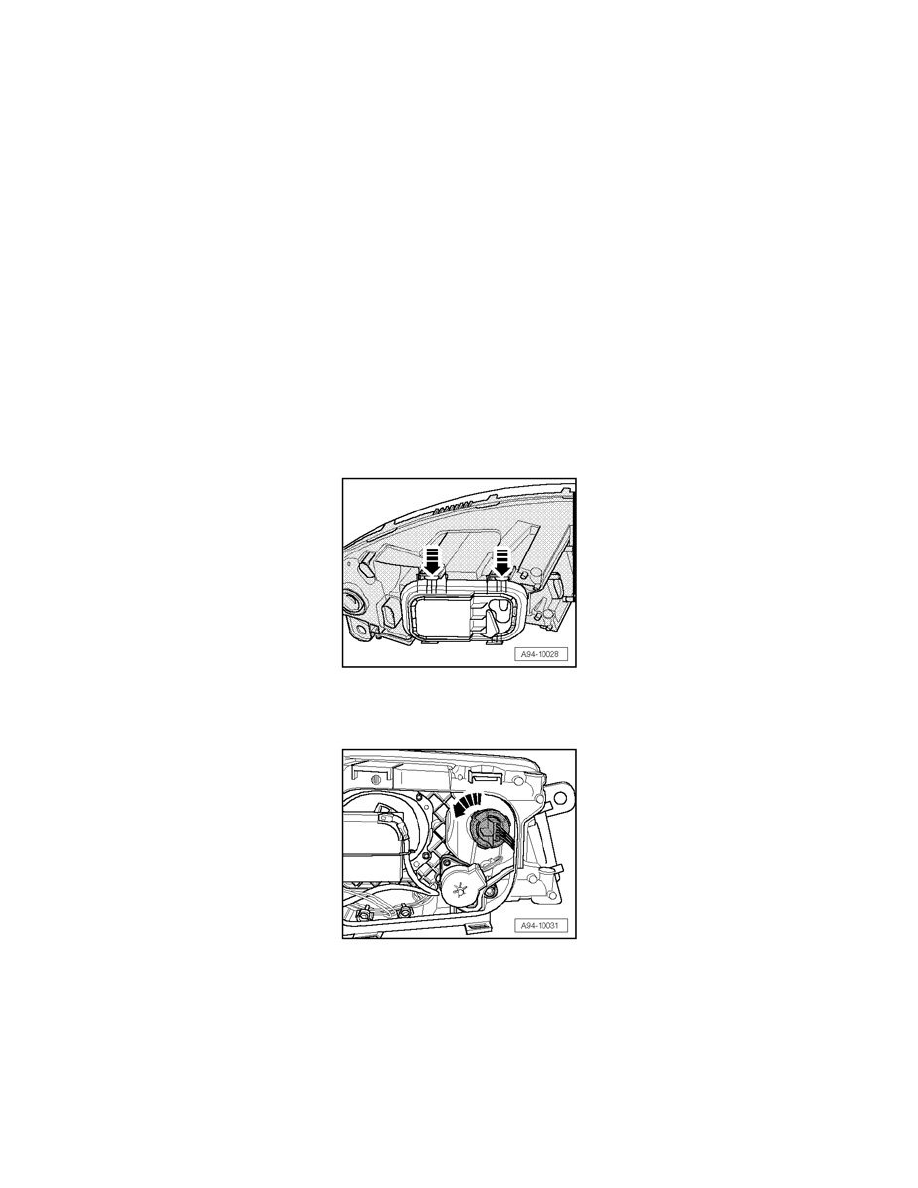

Release securing guides - arrows - and remove headlamp housing cover.
-
Turn socket counter-clockwise - arrow - and remove from headlamp housing.
-
Remove lamp from socket.
Installing
CAUTION:
-
Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that
evaporates on the bulb during operation can cause the glass to cloud over.
-
When installing housing cover, ensure proper seating. Water intrusion will damage headlamp.
Installation is performed in reverse order of removal, noting the following:
