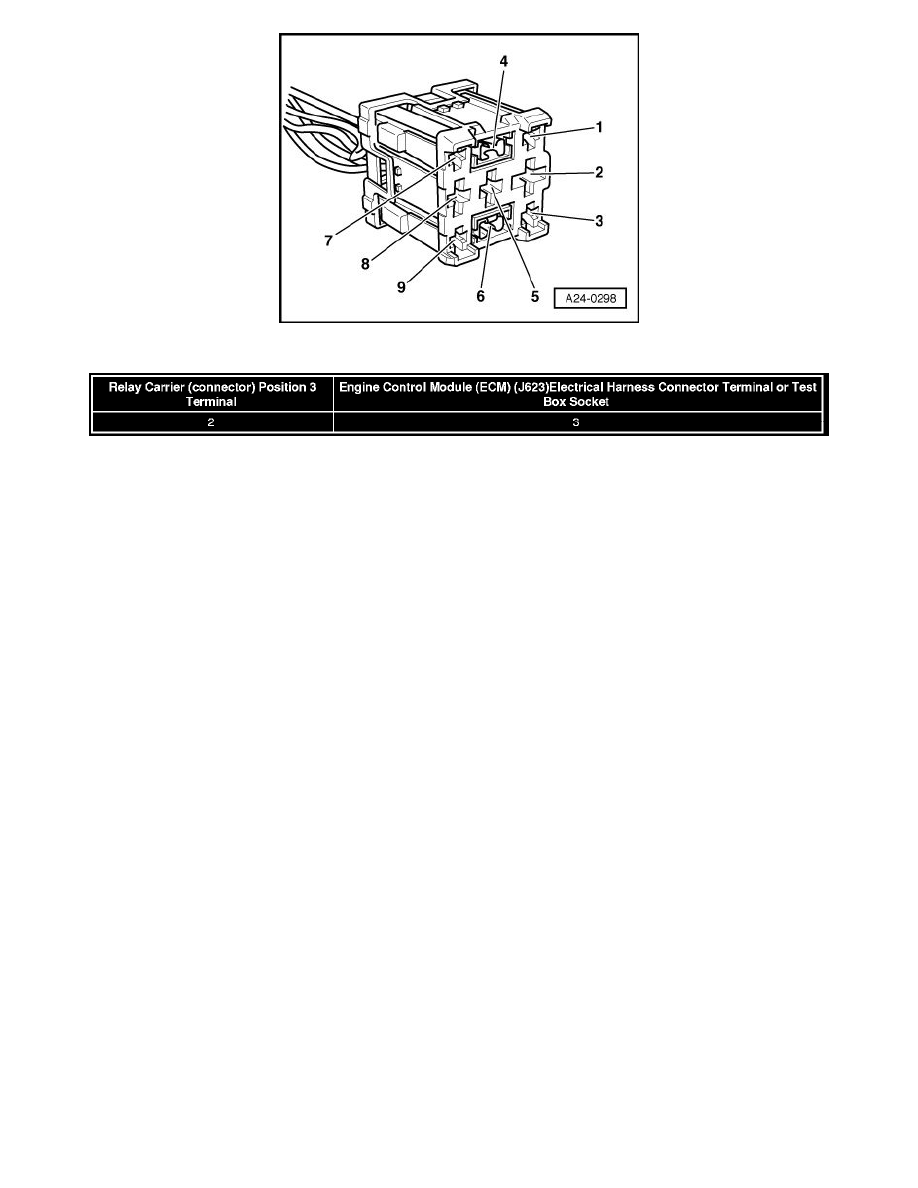

Using a Multimeter, check the following wiring connections for resistance.

Specified value: Wire resistance max 1.5 ohms

If the specification is not obtained:

-

Check the wiring for a short circuit to Battery positive (+) or an open circuit.

-

If necessary, repair the wiring connection.

If no malfunctions are detected:

-

Replace the Engine Control Module (ECM) Power Supply Relay (J363)

Assembly is performed in the reverse order of the removal.

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] See: Testing and Inspection/Scan Tool Testing and

Procedures/Diagnostic Modes 01 - 09/Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] See: Testing and Inspection/Scan Tool Testing

and Procedures/Diagnostic Modes 01 - 09/Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] See: Testing and Inspection/Monitors, Trips, Drive

Cycles and Readiness Codes/Readiness Code.
