A6 Quattro Wagon V6-3.2L (BKH) (2006)
Door Module: Customer Interest
Keyless Entry - Coming/Leaving Home Function Inop.
97 08 16
2013709/2
November 17, 2008.
Supersedes Technical Service Bulletin Group 97 number 06-03 dated December 7, 2006 for reasons listed below.
Affected vehicles
"97 Coming/leaving home function intermittently doesn't work when unlocking doors with the remote control"
Condition
Coming Home / Leaving Home function intermittently does not work when unlocking the doors with the remote control.
After operating the remote control twice in a row, it works again.
Technical Background
Timing problem of the driver side power supply control module (J519).
Production Solution
New software in the driver side power supply control module (J519) resolved the problem.
Service
-

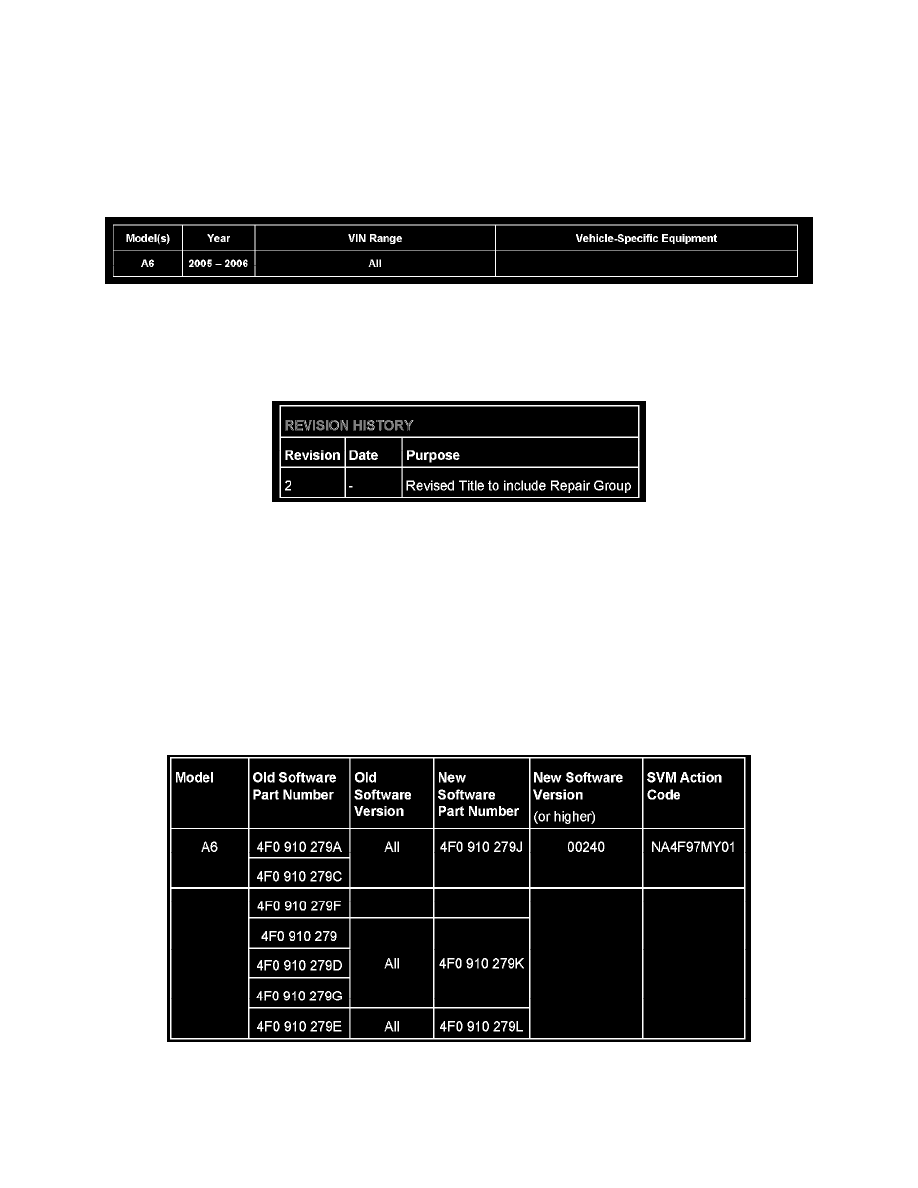

Update the driver side power supply control module (J519) using the SVM action code as listed in the table above.
Tip:
The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be
