A6 Quattro Wagon V6-3.2L (BKH) (2006)

Page 2
background image

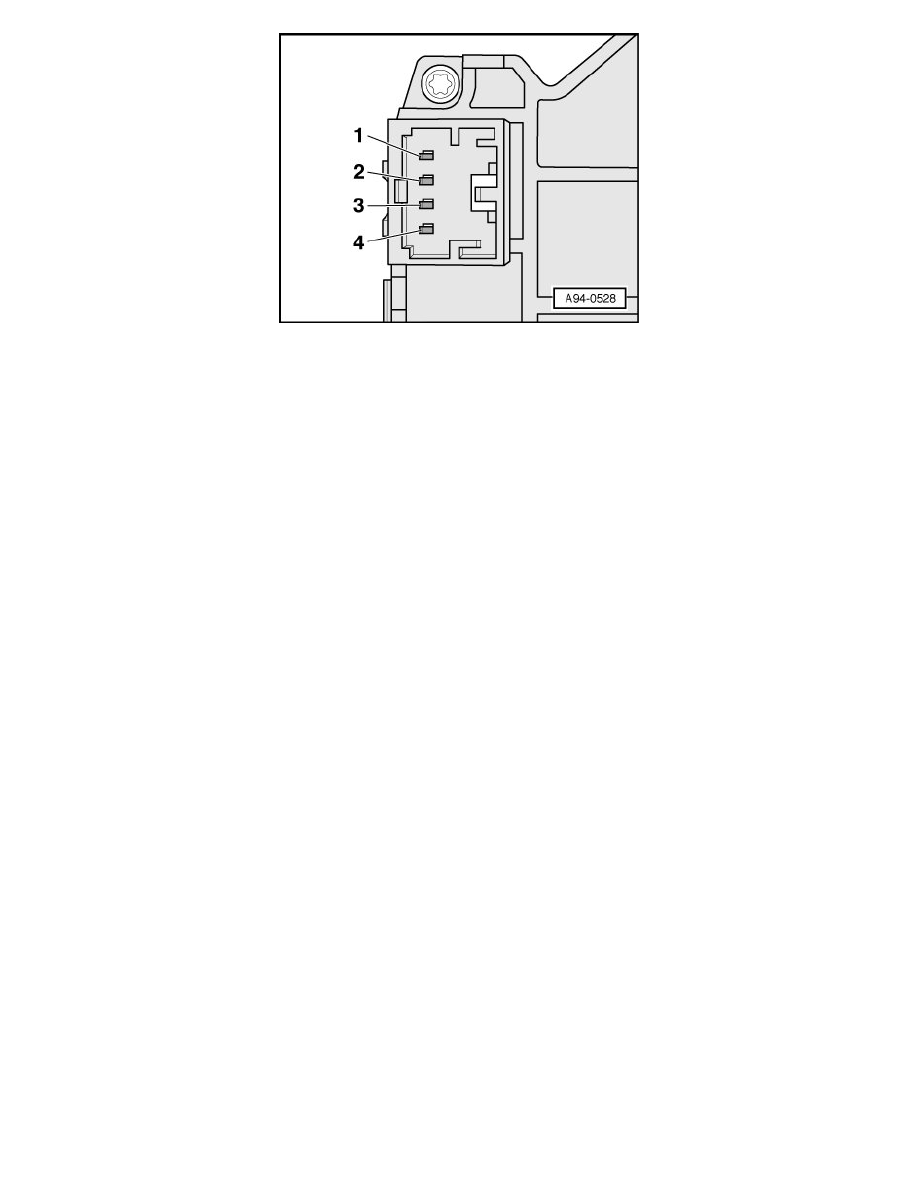

1. Easy Entry

2. Steering column adjustment switch

3. Terminal 31

4. not used
