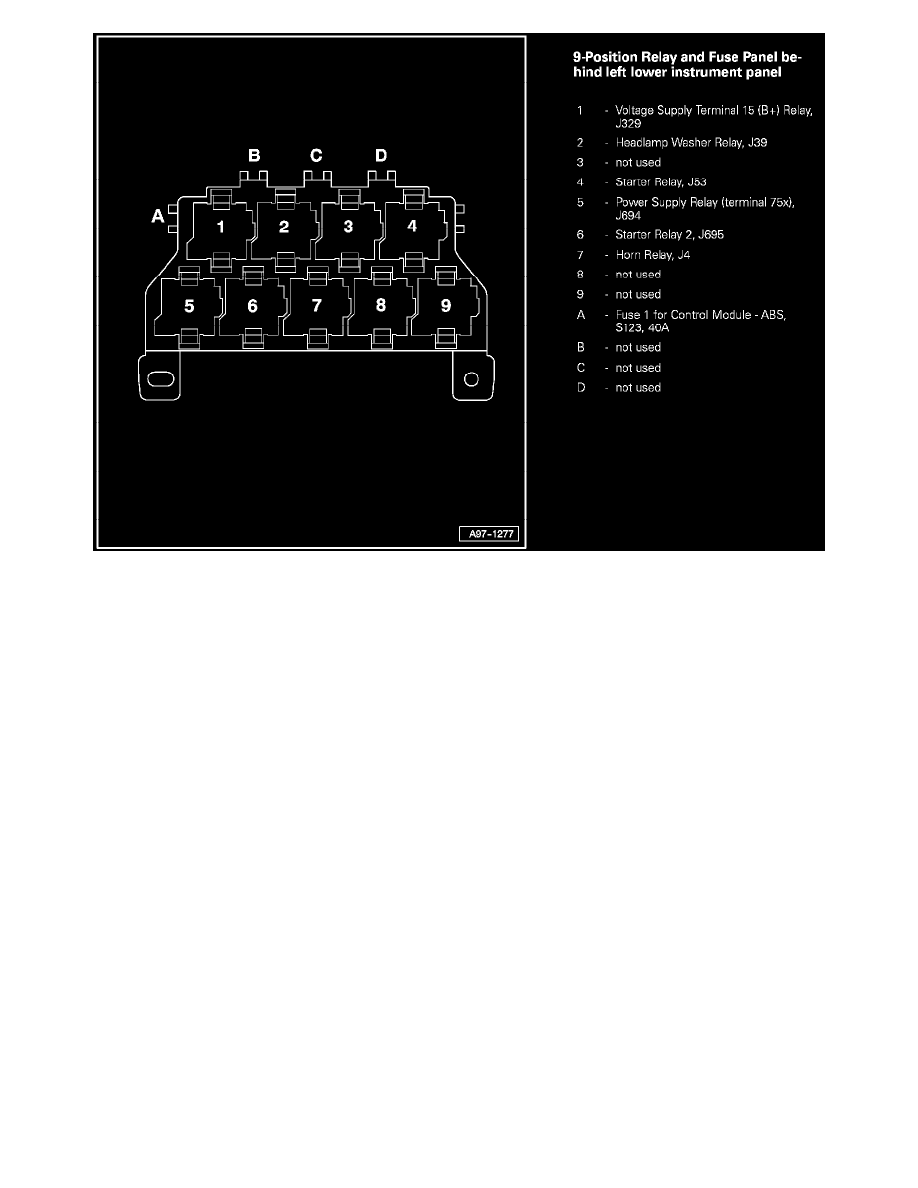

9-Position Relay And Fuse Panel Behind Left Lower Instrument Panel

Starting and Charging
Power and Ground Distribution
Relay Box / Application and ID / Relay and Fuse Panel In E-Box Plenum Chamber, Left
