A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-4943003.png)
-

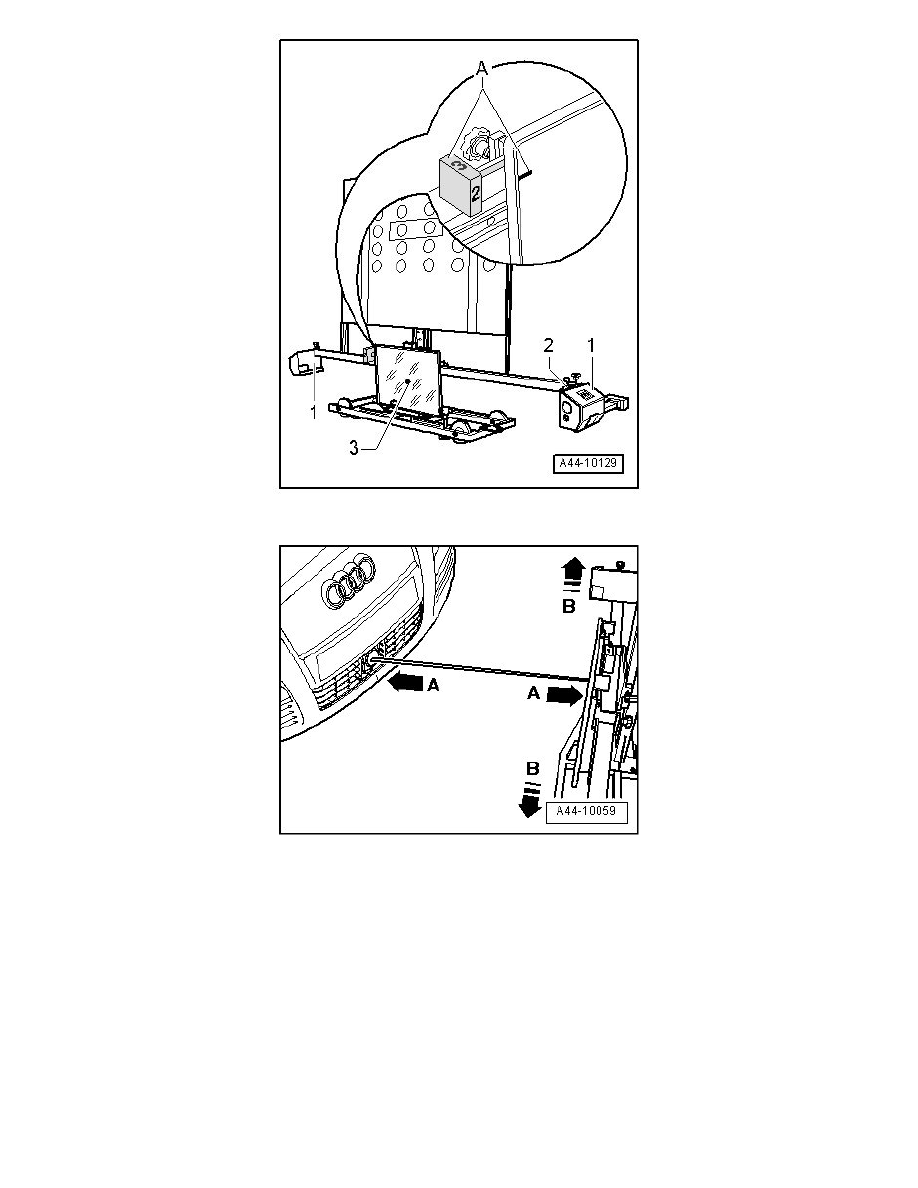

Now align by sliding it sideways - arrows B - (VAS 6430) so that the laser beam is horizontally centered on the senor lens.
-
Level bubble levels - A - and - B - on the (VAS 6430) using the adjusting screws - 1 -, - 2 - and - 3 -.
