A6 Quattro Wagon V6-3.2L (BKH) (2006)

Page 3
background image

-

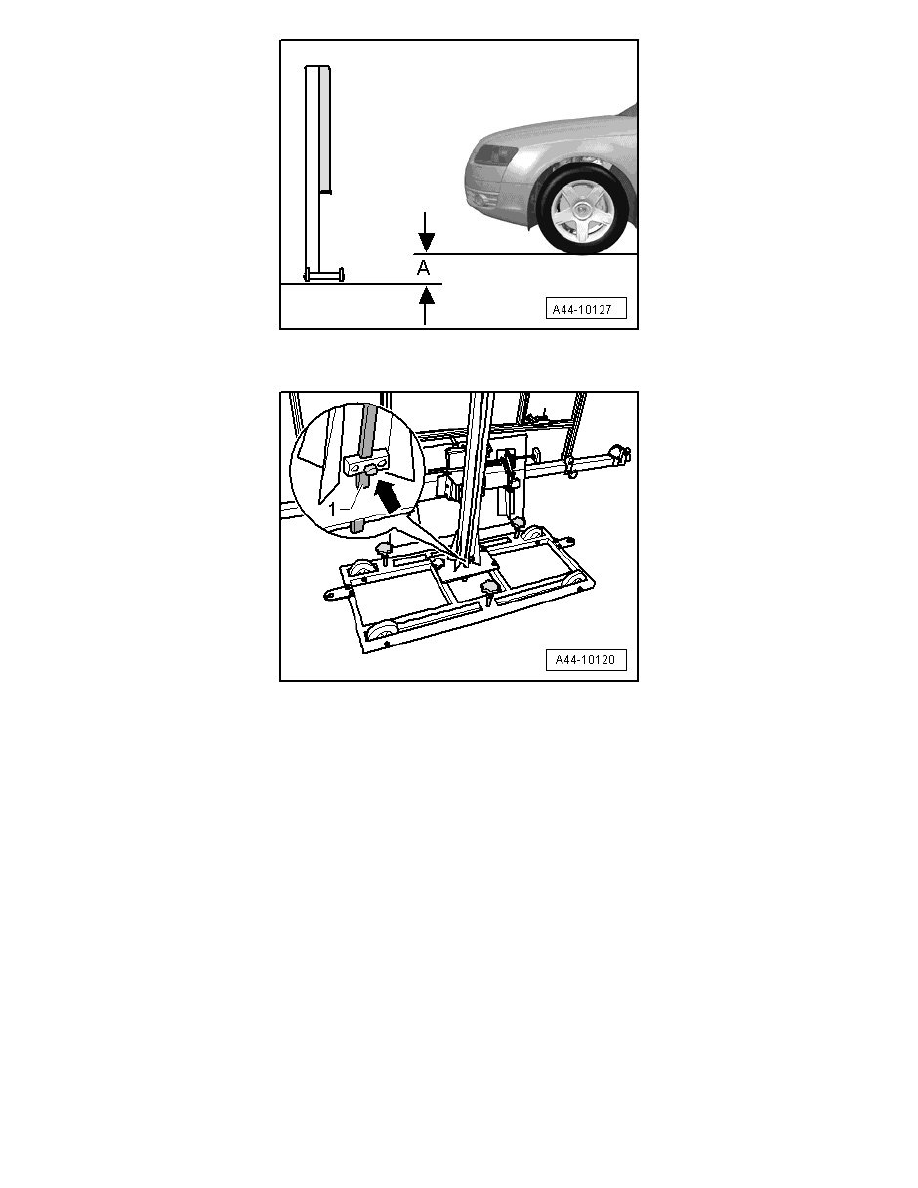

Loosen the bolt - arrow - and place the measuring bar - 1 - on the floor.

-

Adjust the calibration panel to the specified height - 2  - according to the alignment computer using crank - 1 -.
