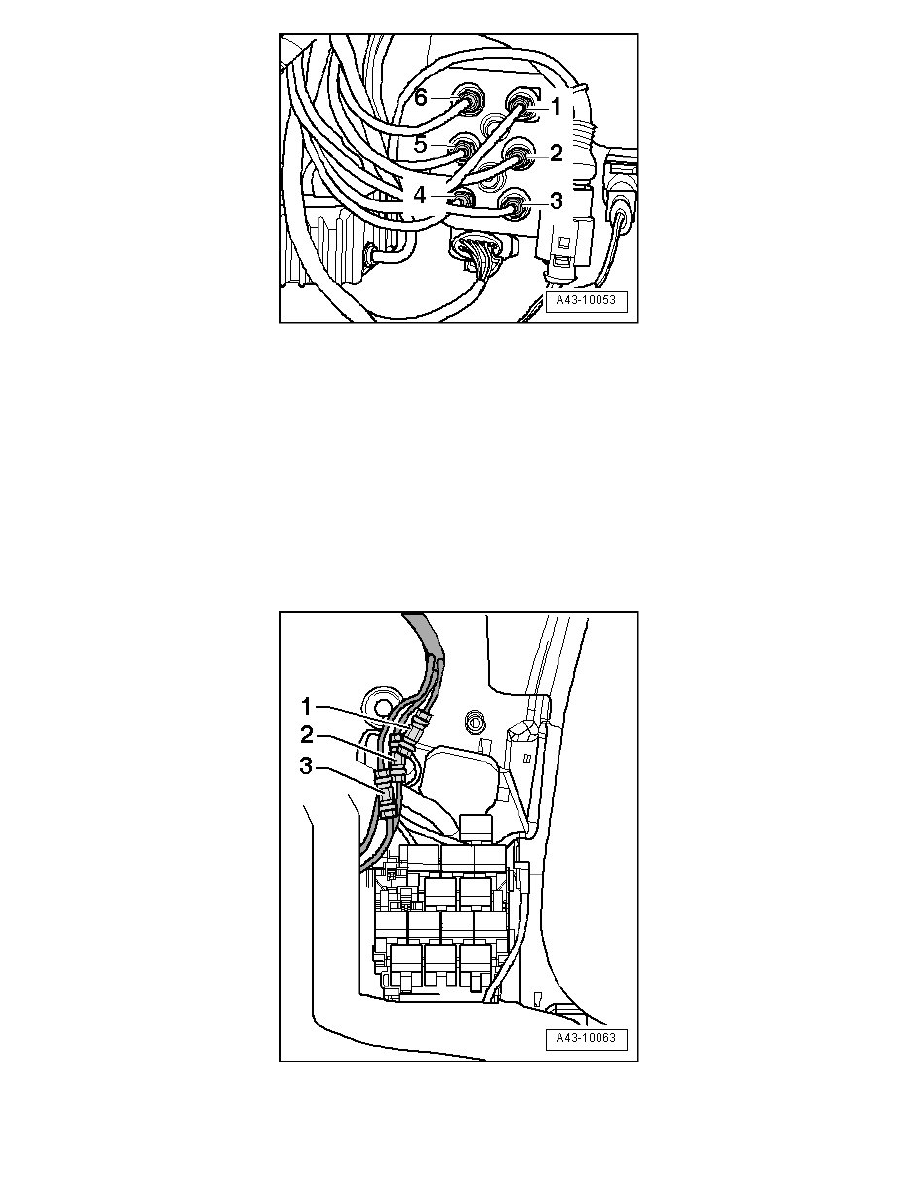

Air pipes are color-coded:

1. "Brown" air line: to air supply unit

2. "Red" air line: to left front suspension strut (air suspension)

3. "Purple" air line: to pressure reservoir

4. "Blue" air line: to right rear air spring damper

5. "Black" air line: to left rear air spring damper

6. "Green" air line: to right front suspension strut (air suspension)

Installation location air liner connector

The line connectors - 1 -, - 2 - and -  3 - for the air lines which lead to the rear axle, are located inside the vehicle on the passenger side behind the
A-pillar trim.
