A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-3851003.png)

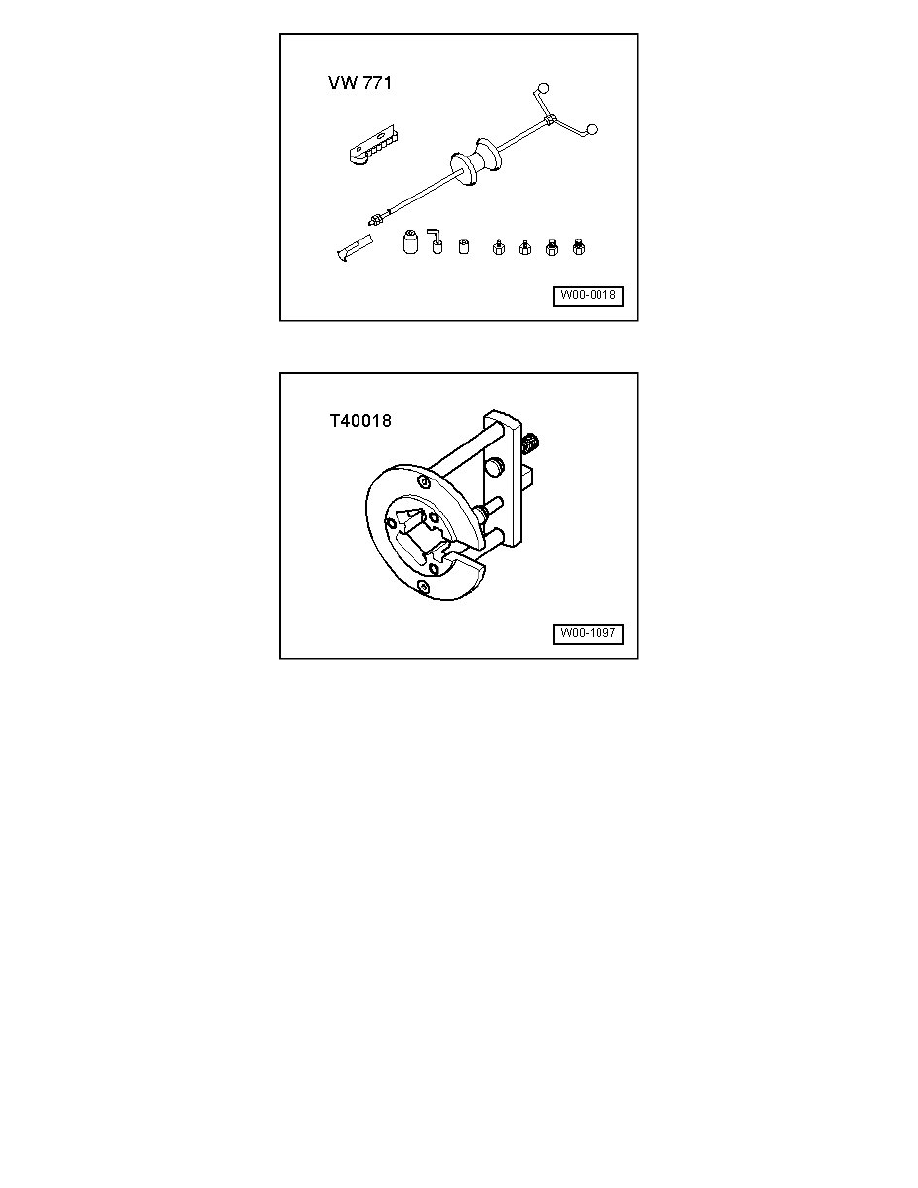

‹› Assembly tool (T40018)
‹› Brass or copper drift
Peened Triple Roller Joint AAR 3300 i, Disassembling
-
Clamp driveshaft horizontally in vise.
‹› Use protective vise covers.
‹› Make sure that driveshaft is not damaged.
-
Mark the location of the joint to the driveshaft
If they are not marked and are not re-installed in their previously installed positions, noises may occur later during driving operation.
A water-proof felt pen is well-suited for marking.
-
Open clamps - arrows -.
