A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-3831001.png)
Final Drive Fluid: Service and Repair
Rear Differential 01R
Gear oil in rear final drive, checking Rear Differential 01R

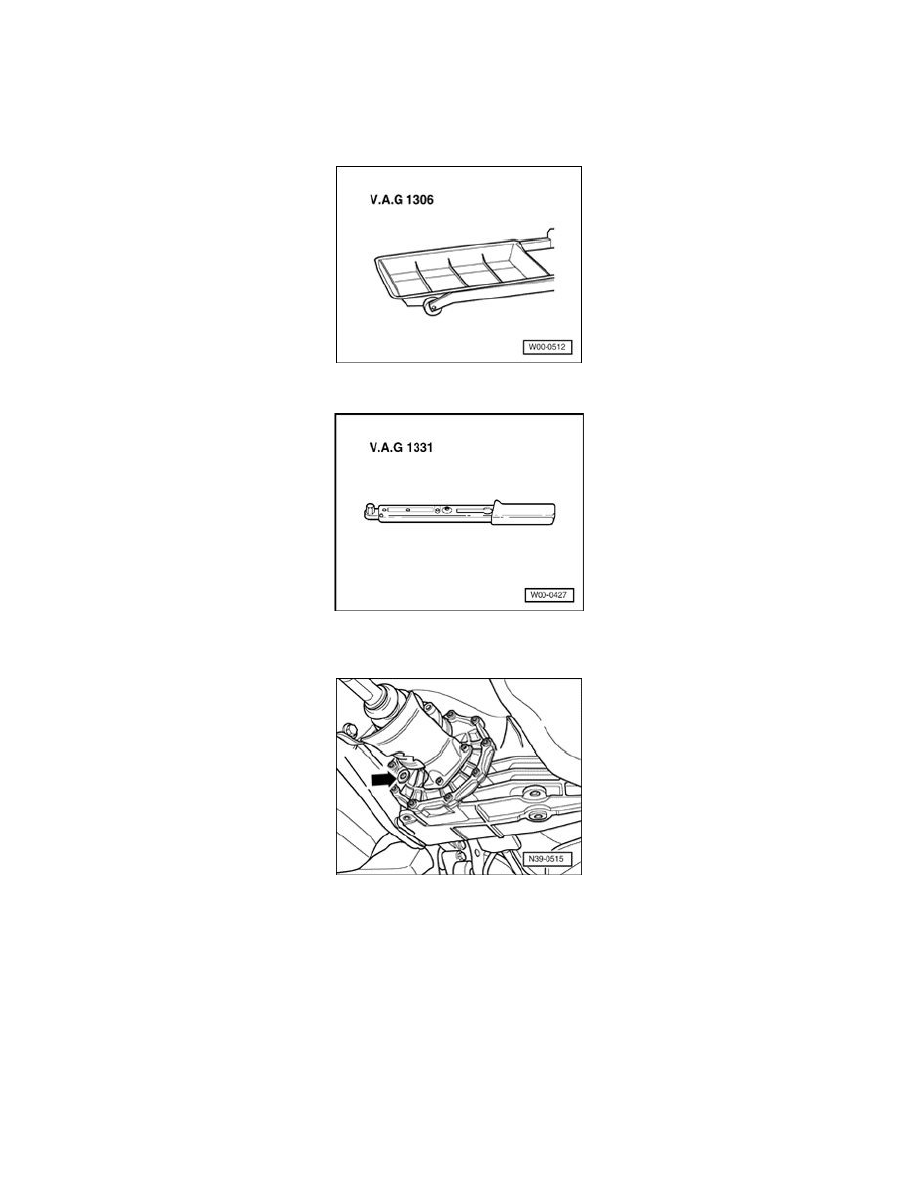

Special tools, testers and auxiliary items required
^
Drip tray V.A.G. 1306
^
Torque wrench V.A.G. 1331
^
Place drip tray V.A.G. 1306 underneath.
^
Unscrew sealing plug for checking transmission fluid - arrow -.
^
The oil level is correct when the rear final drive is filled to the lower edge of the filler hole.
^
Top up oil to lower edge of filler hole.
