A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-8990002.png)
-

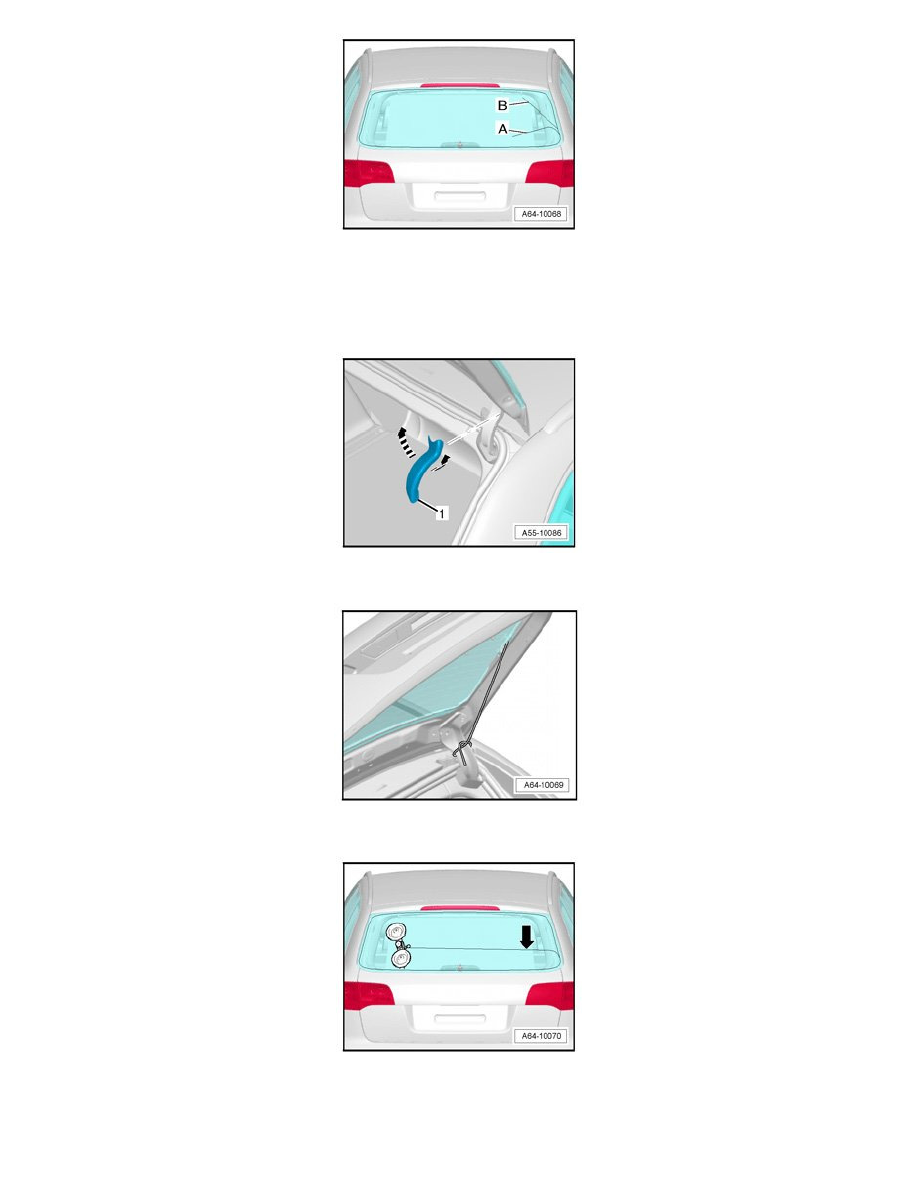

Using needle and handle, pull second cutting cord end - B - inward as shown.
NOTE: Cutting cord ends - A - and - B - may not be pulled diagonally.
-
Thread cutting cord end - A - into spooling tool V.A.G 1654 and secure.
-
Pull cover - 1 - apart in direction of arrow and remove from lid hinge.
-
Secure cutting cord ends on lid hinge as shown.
-
Fasten V.A.G 1654 spooling tool as shown to rear window.
-
When cutting side area, press cutting cord in - direction of arrow -.
-
Cut bottom of window free.
