A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-9148001.png)
Wiper Blade: Service and Repair
Windshield Wiper Blades
Windshield Wiper Blades
Removing
-
Bring windshield wiper into service position. Refer to => [ Windshield Wipers, Service Position ] See: Description and Operation.
-
Lift off wiper arm from front windshield.
-

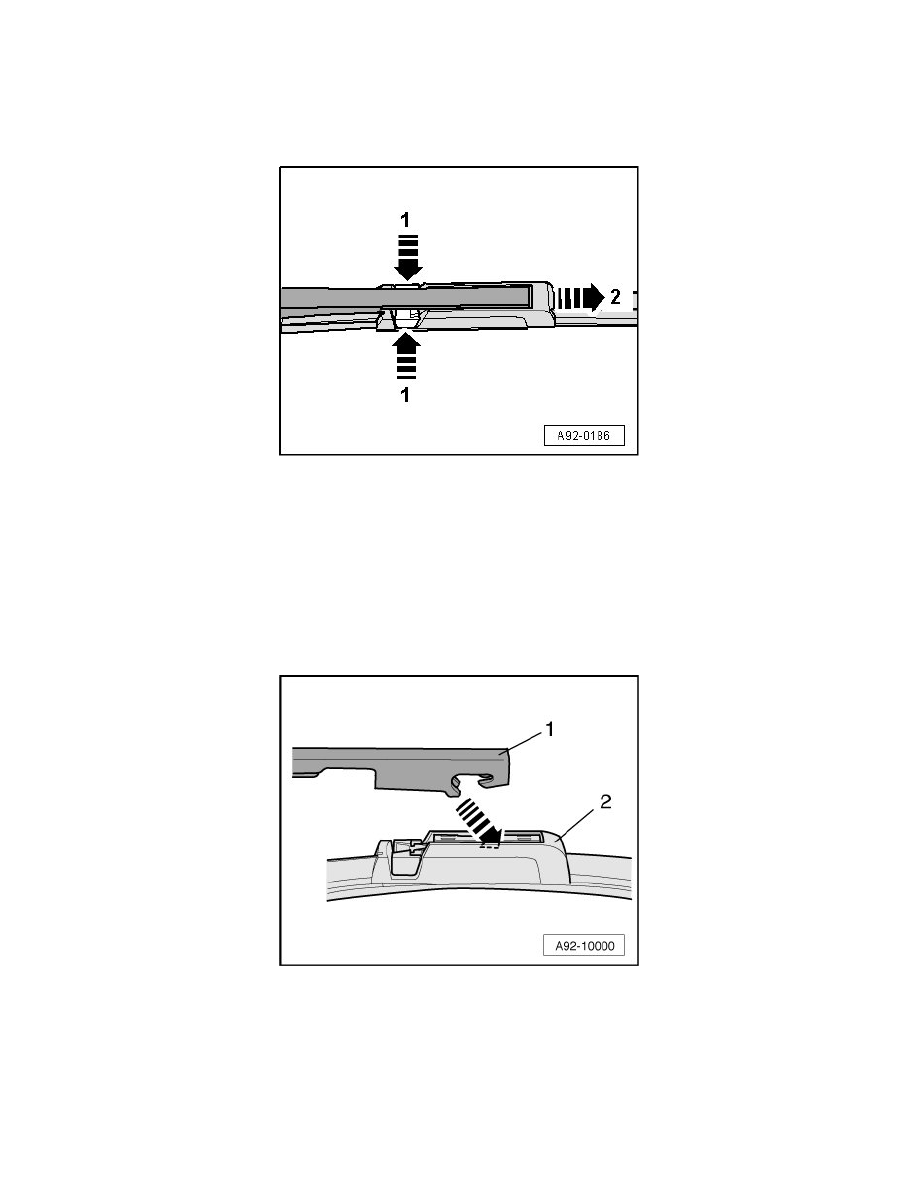

Compress clip - arrows 1 -.
-
Push wiper blade off wiper arm - arrow 2 -.
-
Remove wiper blade.
Installing
Install in reverse order of removal, observing the following:
-
Guide the wiper blade - 2 - parallel into the wiper arm - 1 - - arrow -. Make sure wiper arm rest completely in guide.
-
If the windshield wiper switch is operated or a speed of 6 km/h is exceeded, the wipers leave the "service position".
