Timing Belt: Diagrams (page 4 of 5)
- Make
- Audi
- Model
- A6 Sedan
- Engine
- V6-2.8L (AHA)
- Year
- 1998
- Section
- Timing Belt
MaintenanceDiagrams · page 4 of 5
/Page-2333003.png)

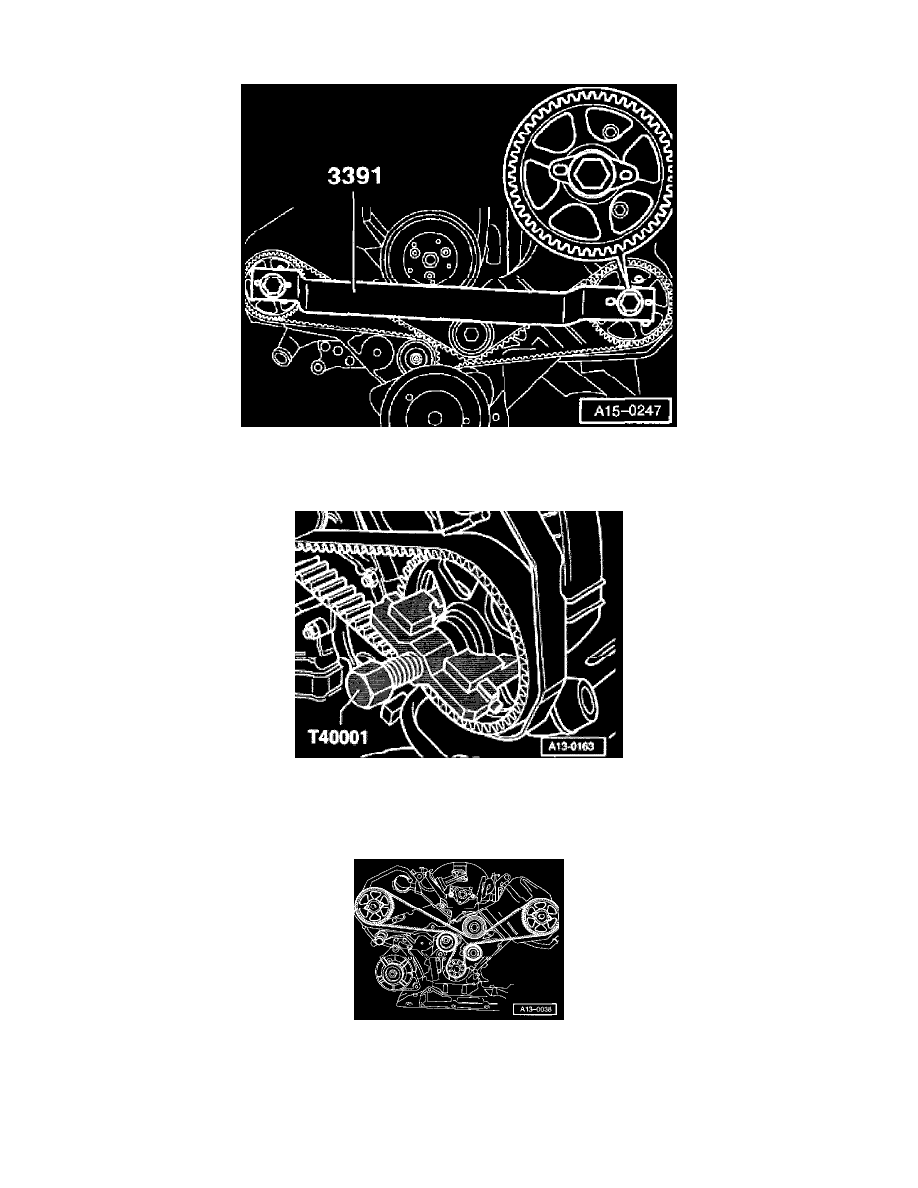

Installing
- Install 3391 camshaft locator bar into locking plates of camshafts.
- Loosen bolts of both camshafts and back out bolts approx. 5 turns.
- Remove 3391 camshaft locator bar.
- Remove both camshaft sprockets using T40001.
- Reinstall both camshaft sprockets together with locking plates and hand-tighten.
Note:
The camshaft sprockets should be loose enough to be turned but not so loose as to be out of alignment.
- Install toothed belt on all sprockets as shown.
- Install 3391 camshaft holding bar.
