Alignment (Description): Description and Operation

Make

Audi

Model

A6 Wagon

Engine

V6-2.8L (AFC)

Year

1995

Section

Alignment › Description and Operation › Description

MaintenanceDescription · page 1 of 3

Alignment: Description and Operation
Description

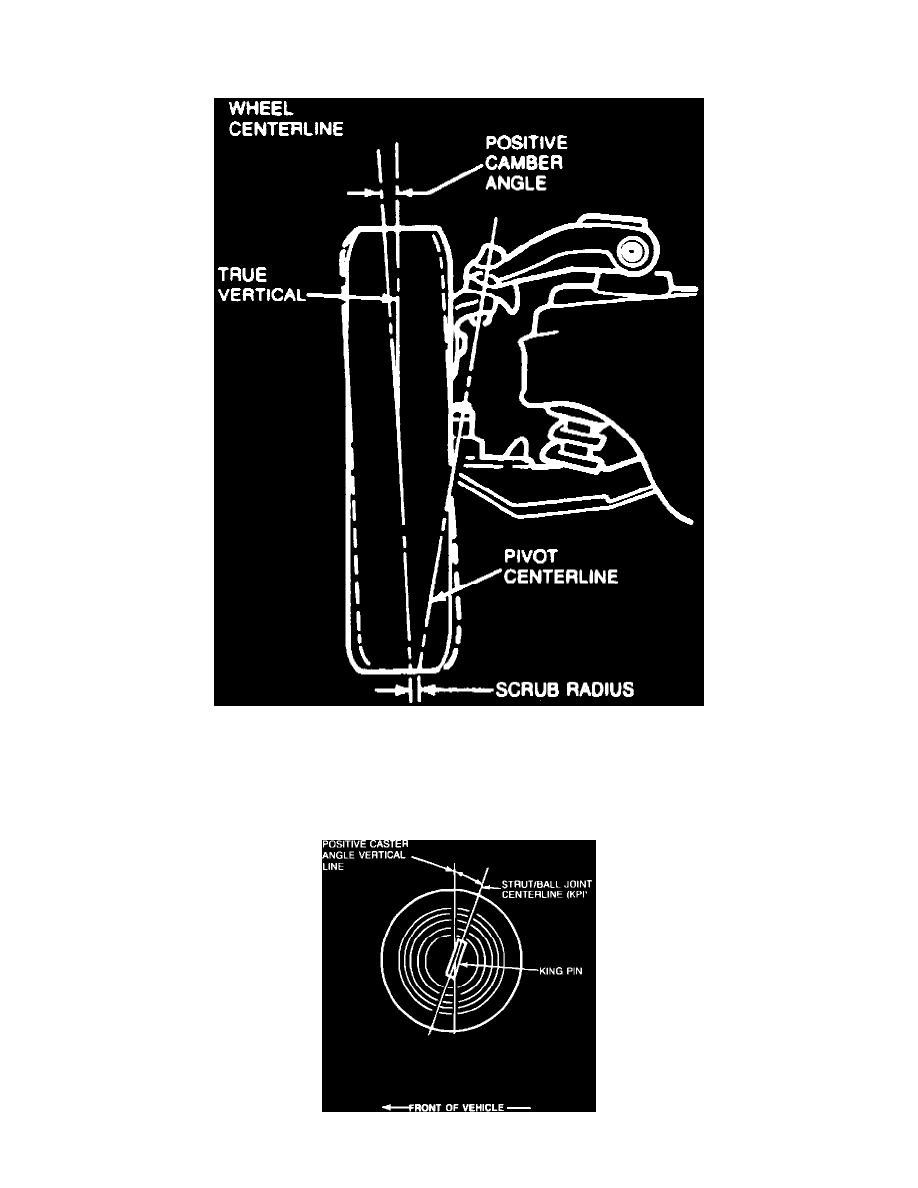

Fig.1  Camber Angle

CAMBER

    Camber is the amount of centerline of the wheel is tilted inward or outward from true vertical, Fig. 1. If a wheel tilts outward, camber angle is positive.
If the top of a wheel tilts inward, camber angle is negative.

Fig. 2 Caster description
