Audi Workshop Service and Repair Manuals

Antenna - Keyless Entry: Service and Repair
Luggage Compartment Access/Start Authorization Antenna

Luggage Compartment Access/Start Authorization Antenna

Removing

-

Remove lower rear shelf trim.

-

Disconnect electrical connector - 3 -.

-

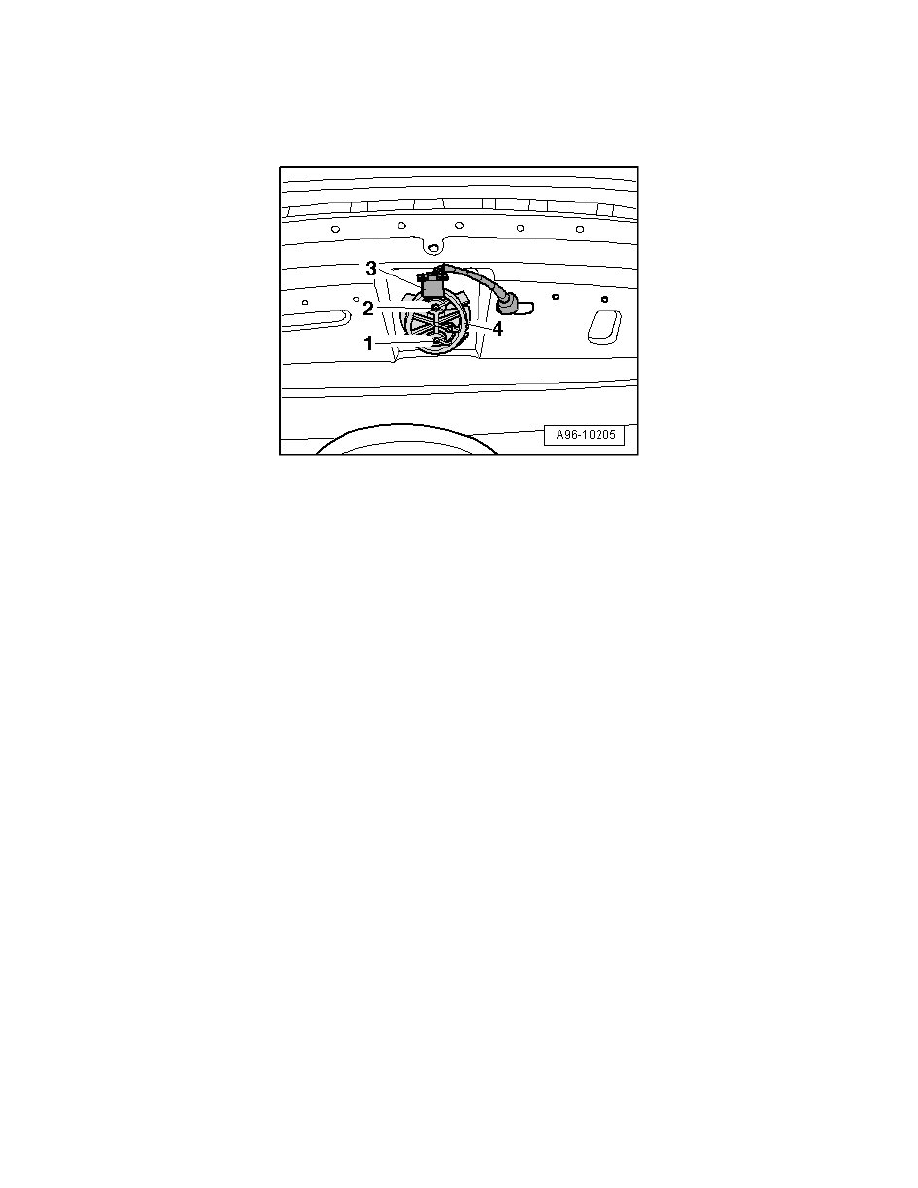

Remove bolts - 1 - and - 2 - and remove Luggage Compartment Access/Start Authorization Antenna (R137) - item 4 -.

Installing

Install in reverse order of removal, observing the following:

-

Install lower rear shelf trim.
