A8 Sedan V8-3.7L (AEW) (1997)
Seat Sensor/Switch: Testing and Inspection
Sensor MAT Function For Occupied Seat Sensor, Checking
Passenger seat:
-
Read measuring value block display group 003:
Read Measuring Value Block 3
->
correct not occupied Belt: no Belt: no
-
Check display in display field 2.
-
Specified value: not occupied
Rear seat:
-
Read measuring value block display group 006:
Read Measuring Value Block 6
->
not occupied
not occupied
-
Check display in display field 1 and 2.
-
Specified value: not occupied
All:
NOTE: If in unloaded condition "occupied" appears, sensor mat is faulty or cover is too tight.
-

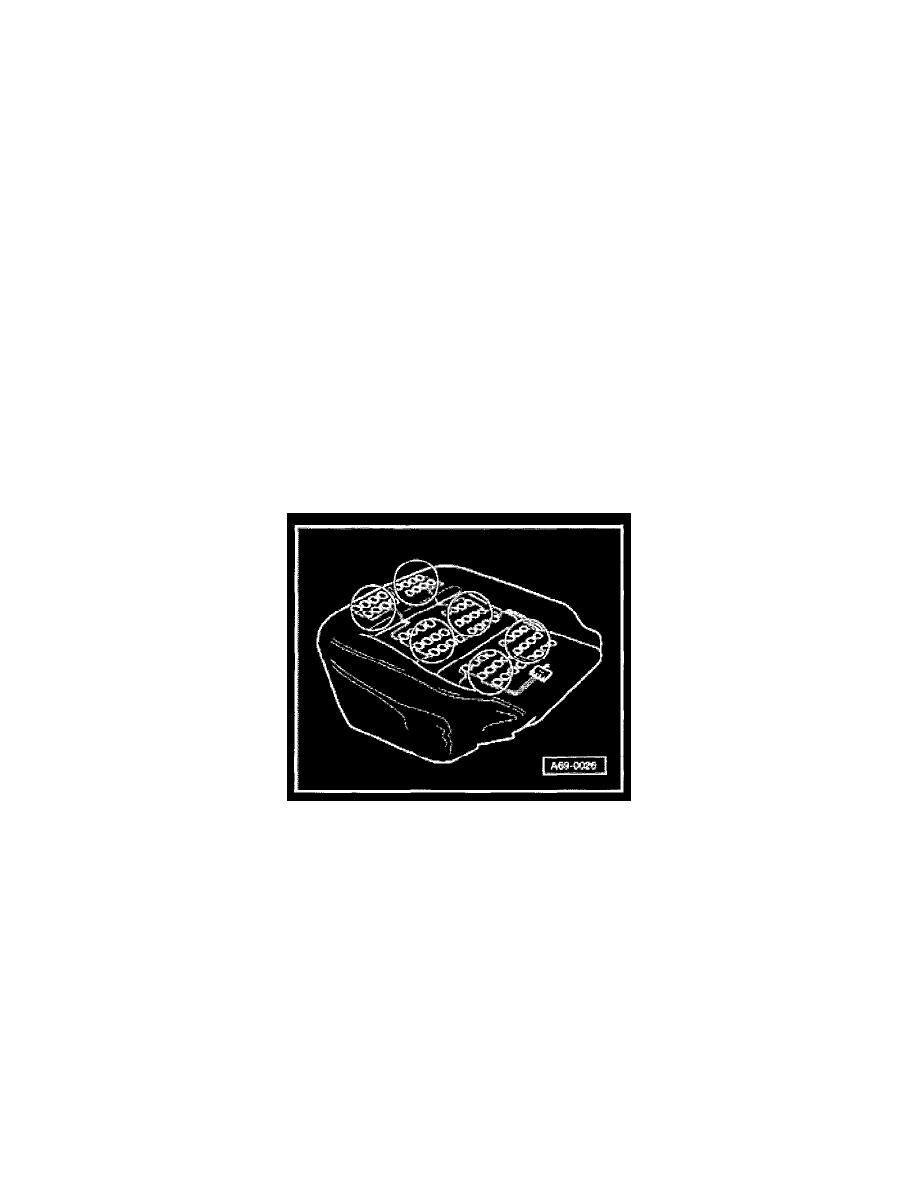

With hand press on individual sensor groups circuit.
Max. pressure force: 26.46 lb.
NOTE: Fig. shows sensor mat without cover
-
Check display in display field 1 or 2.
-
Specified value: occupied
