A8L V8-4.2L (BFM) (2004)
/Page-6198001.png)
Auxiliary Input / Output Jack: Diagrams
External Audio Source Connection Connectors, AMI, Through 29 August 2008
Radio System

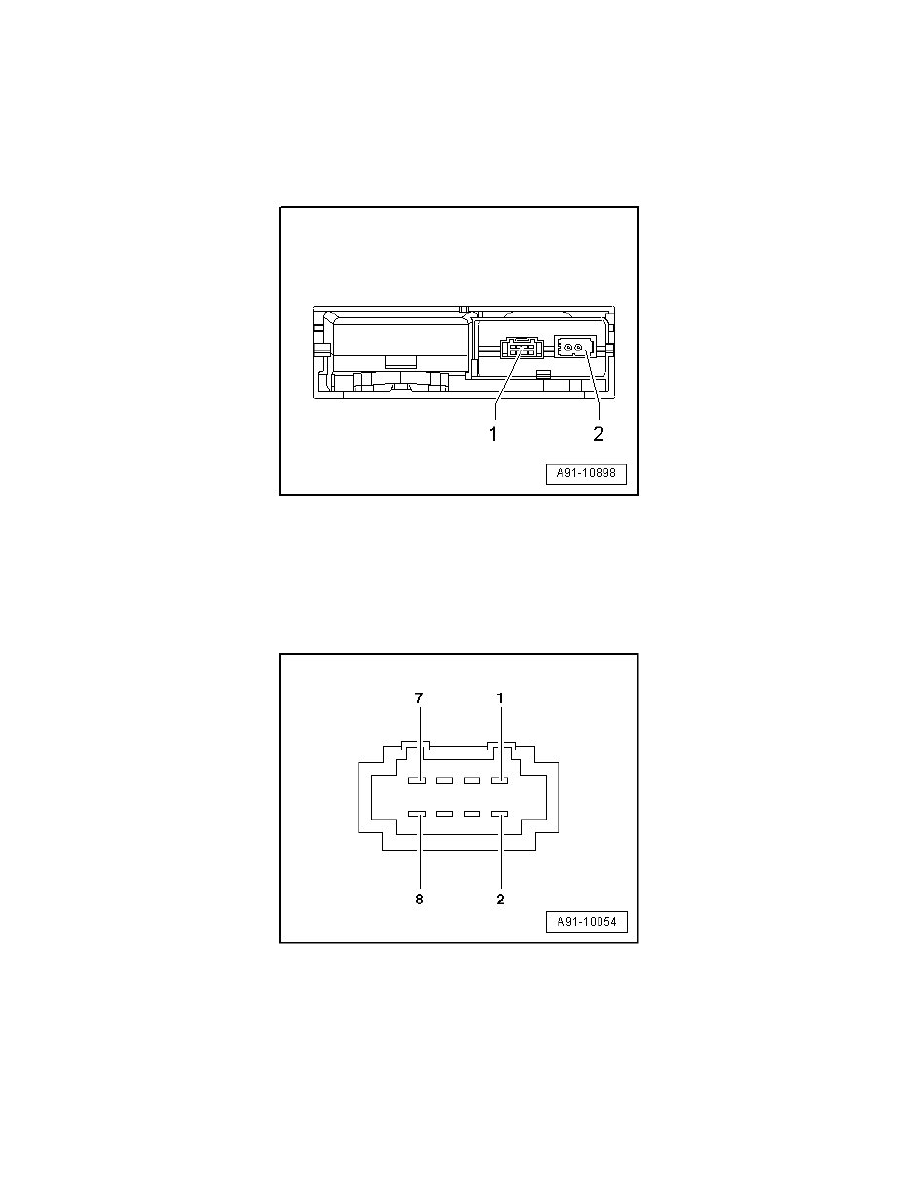

External Audio Source Connection Connectors, AMI, through 29 August 2008
External Audio Source Connection (R199)
1. Black 8-pin connector
2. MOST bus
‹› Unlisted connector terminals are not used.
1 - Black 8-Pin Connector
1
Terminal 31
2
Terminal 30
5
Ring-break diagnostic cable
2 - MOST Bus
