A8L V8-4.2L (BFM) (2004)
/Page-2364001.png)
Radiator: Removal and Replacement

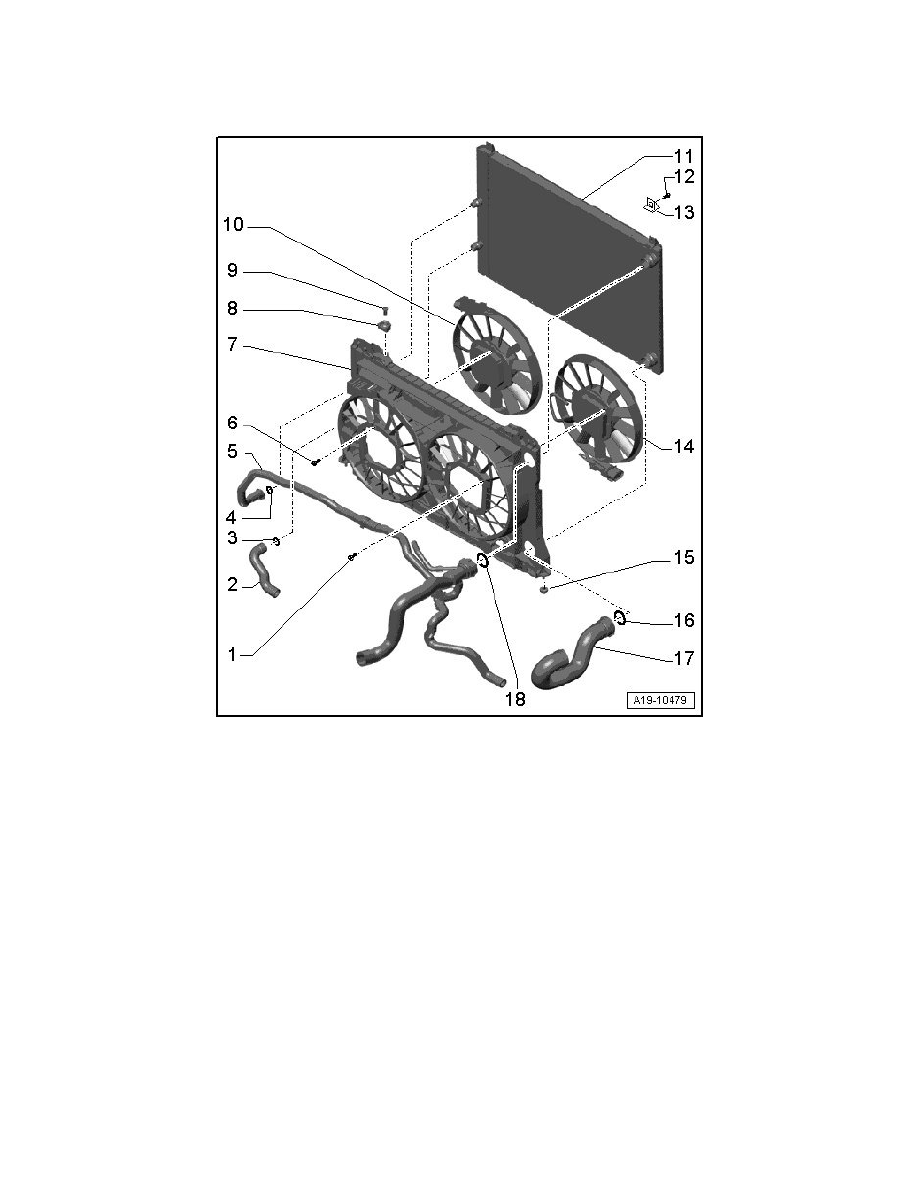

Radiator and Coolant Fan Assembly Overview
Radiator and Coolant Fan Assembly Overview
1
Bolt, 10 Nm
‹› Always replace.
2
Coolant Hose
‹› To remove, disengage the retaining clip.
3
O-ring
‹› Always replace.
4
O-ring
‹› Always replace.
5
Coolant Hose
‹› To remove, disengage the retaining clip.
‹› Version shown is for a radiator with bypass; converting to bypass, refer to => [ Converting to a Radiator with Bypass ] See: Procedures.
6
Bolt, 10 Nm
