A8L V8-4.2L (BFM) (2004)
/Page-5362001.png)
Cabin Temperature Sensor / Switch: Service and Repair

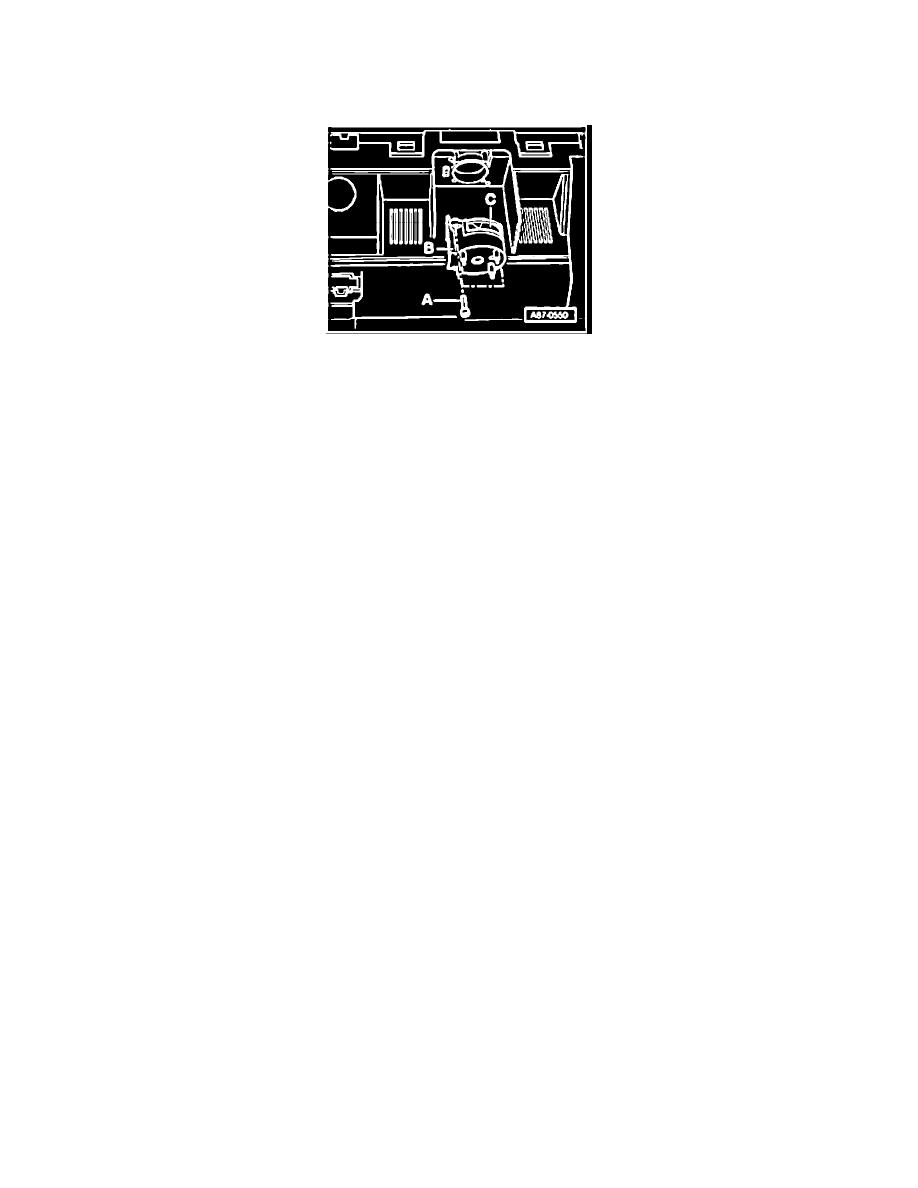

Interior Temperature Sensor Fan -V42-, Removing And Installing
-
Remove Climatronic Control Module -J255-.
-
Remove bolts -A-.
-
Pull Interior Temperature Sensor Fan -V42- (-B-) out of Climatronic Control Module -J255-.
NOTE: When installing Interior Temperature Sensor Fan -V42-, do not press on motor -C-, but rather grasp hold of blower housing.
